KAESER ESD.2C - Fig. 14 Inlet Valve Oil Filling Port; Fig. 15 Coupling

Material 4 l Cooling oil from separator tank
Precondition The supply disconnecting device is switched off.
The disconnecting device is locked off.
A check has been made that no voltage is present.
The machine is fully vented, the pressure gauge on the oil separator tank reads 0 bar.

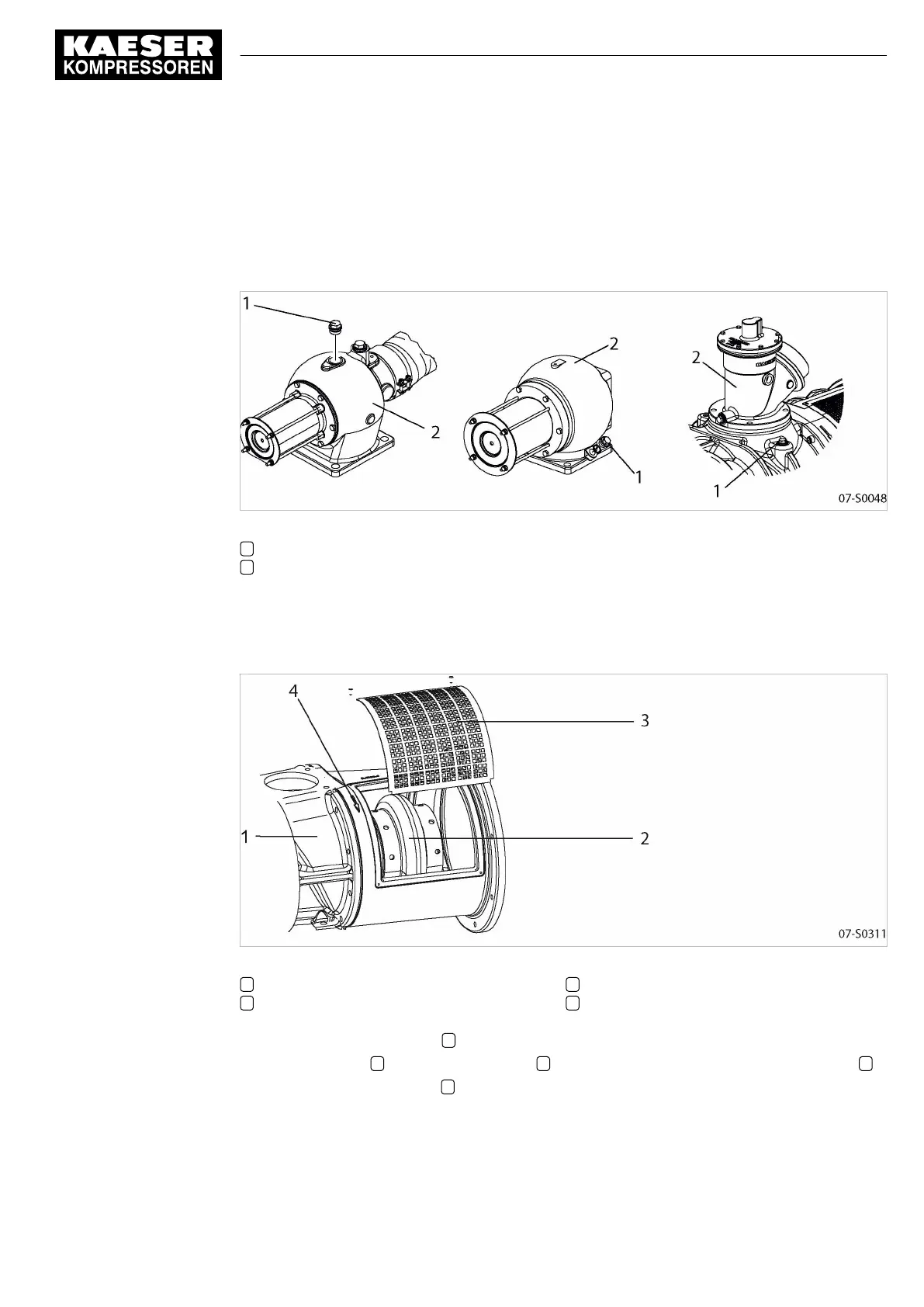

Fig. 14 Inlet valve oil filling port
1 Screw plug
2 Inlet valve
1. Unscrew the filler plug from the inlet valve.
2. Pour the stipulated amount of cooling oil into the airend and replace the filler plug.
3. See the LINDE operating manual for cleaning instructions..
Fig. 15 Coupling
1 Airend
2 Coupling
3 Safety screen
4 Arrow showing direction of rotation
1. Remove the safety screen 3 .
2. Turn the airend 1 by turning the coupling 2 by hand in the direction indicated by the arrow 4 .
3. Replace the safety screen 3 .
7 Initial Start-up
7.6 Filling cooling oil into the airend
ESD_2C_10357405_10–LIN_00 E
Service Manual Screw Compressor
ESD 442/14 bar (abs) SFC SIGMA CONTROL 2
45
