Model 4200-SCS User’s Manual Section 3: Common Device Characterization Tests
Two wire resistor test
By default, the following test uses two SMUs. It is also possible to use one SMU
and the GNDU (see Figure 3-4).

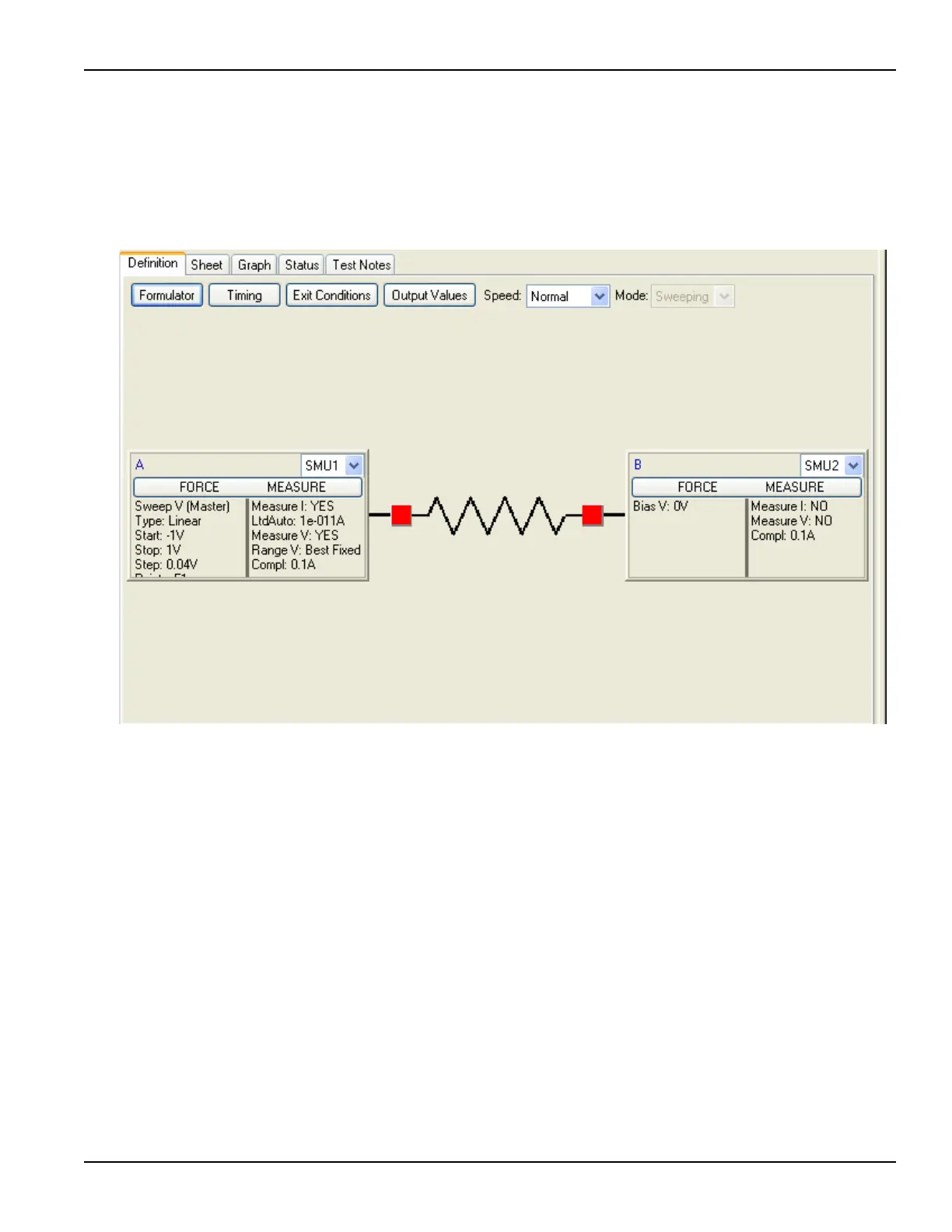

Figure 3-4
Two wire resistor test
Description of two wire resistor test:
res2t:
This test runs a simple negative-to-positive voltage sweep across a two-wire resistor and
plots the current vs. voltage.
