Add a UTM
To add the cvsweep UTM to the new project by copying it from the default test library
(C:\S4200\kiuser\tests):
1. In the project navigator, double-click the Capacitor device to open the device plan window.
2. On the sequence tab of the device plan window, use the Test Library pull-down menu to
select the default test library as shown in Figure 4-68.
3. Double-click the Capacitor folder to open it and display the available tests for that device.
Figure 4-69A shows the Capacitor folder opened.
4. For the Capacitor folder, click cvsweep to select it. Figure 4-69 shows cvsweep selected.
5. Click Copy to place the test in the test sequence table. Figure 4-69 shows cvsweep copied
into the test sequence table.
6. At the bottom of the device plan window, click Apply to copy the test into the project
navigator. Figure 4-69B shows the cvsweep UTM added to the project.
7. If desired, the device plan window may be closed by pressing the close (X) button. The
close (X) button is located on the right, above the device plan window.

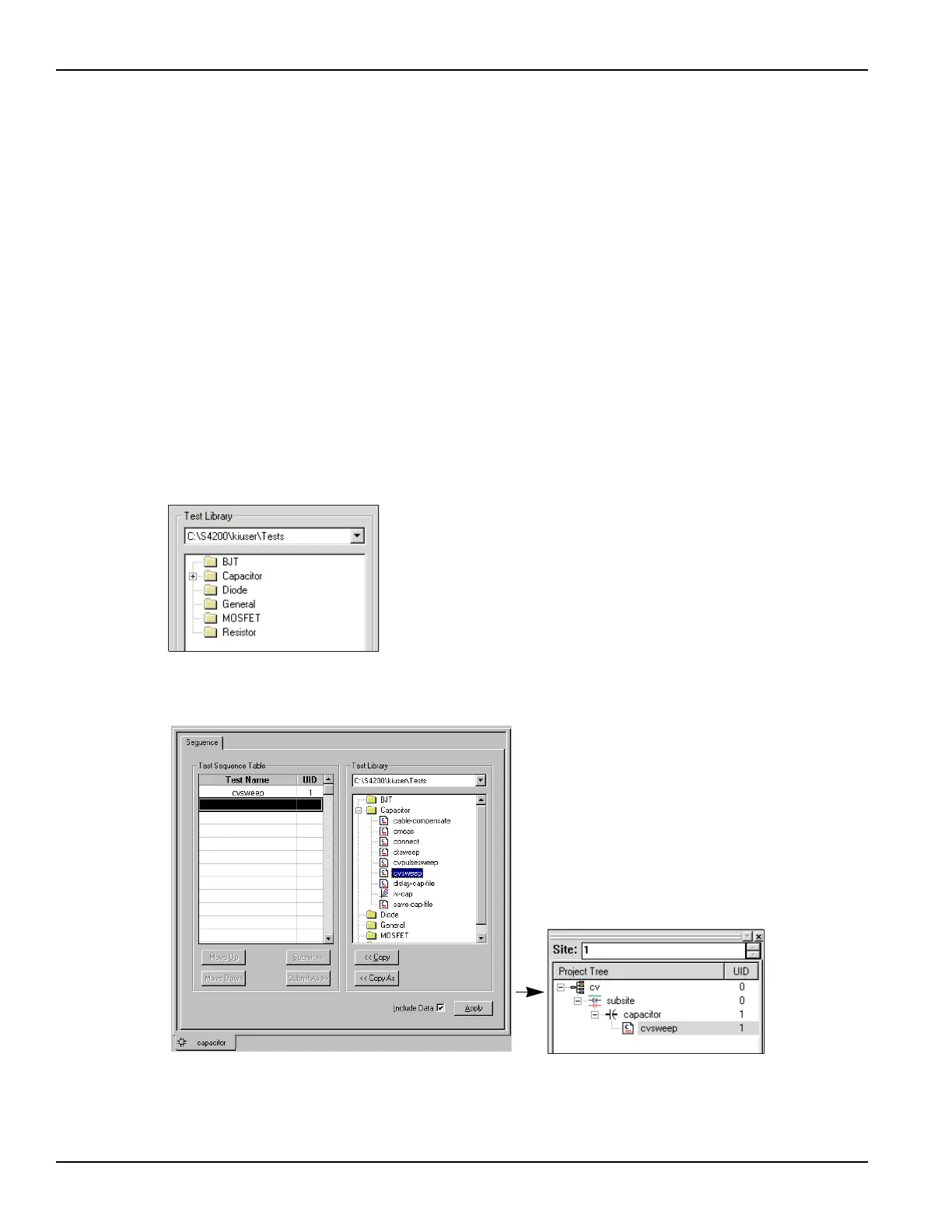

Figure 4-68
Default test library folders
Figure 4-69
Add the cvsweep UTM
A. Window to specify the test module name B. Project navigator
