4200-900-01 Rev. K / February 2017 Return to Section Topics 3-9
Model 4200-SCS User’s Manual Section 3: Common Device Characterization Tests

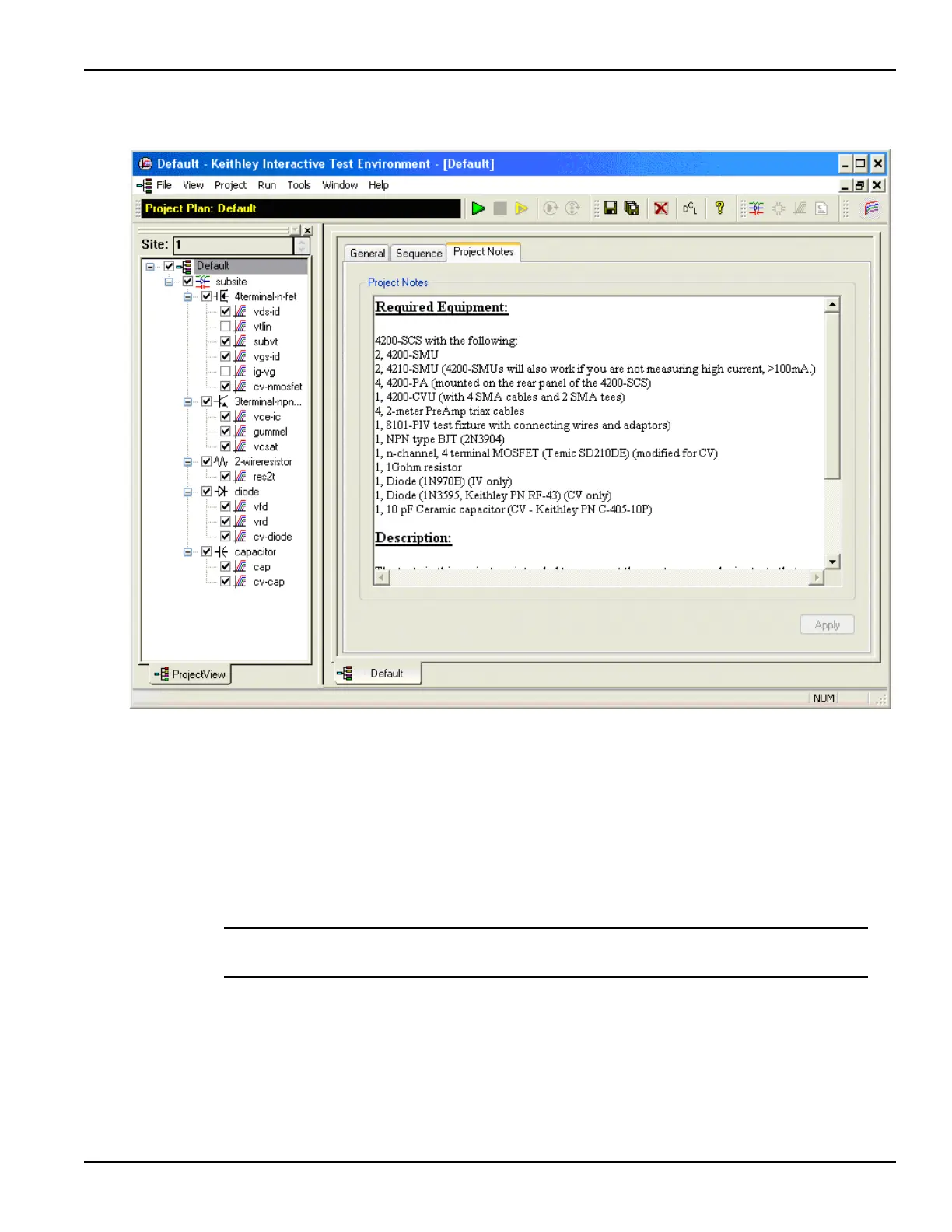

Figure 3-6
Project Notes tab
Connections
The vast majority of I-V DUT connections are made by using mini triax cables (for
SMU) or full triax-to-triax cables (for preamp), and connecting to the SMU/PA
source and sense connectors on one end, and to your DUT on the other.
The SenseLO SMU connector is used only in special cases. For additional details
and schematics on connecting DUTs to the Connecting DUTs, page 1-36 or Model
4200-SCS Reference Manual, Connections and Configuration, Section 4.
NOTE In general, the 4200-SCS uses BLACK triax cables for I-V testing, RED SMA cables
for C-V testing, and WHITE SMA cables for pulse testing.
