The Forcing Functions / Measure Options (FFMO) window is used to configure
the force and measure options for the 4210-CVU. This window is opened by
clicking the FORCE MEASURE bar for the CVH1 terminal in the definition tab, as
shown in Figure 3-10. Figure 3-12 shows an example of the FFMO window.

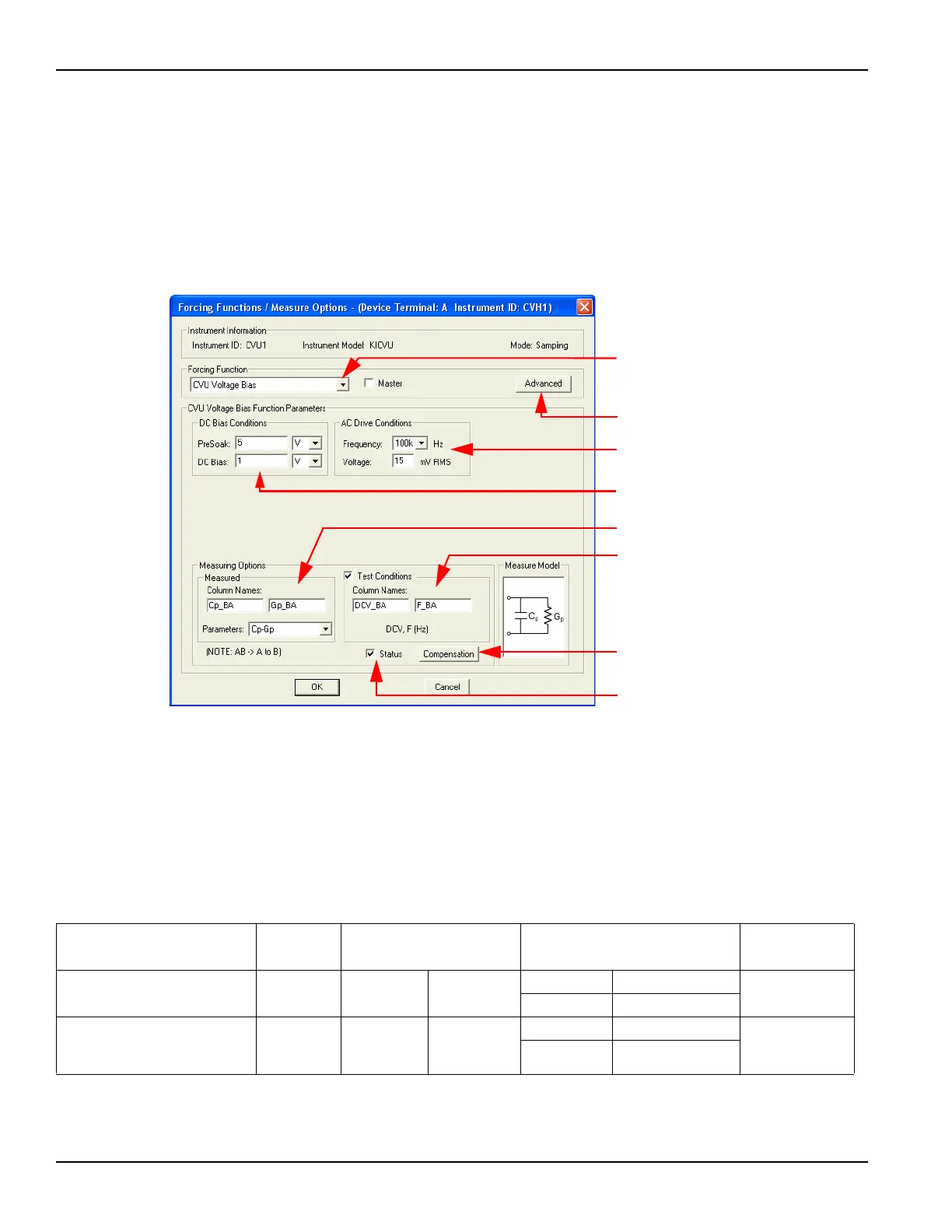

Figure 3-12
Forcing function: CVU voltage bias (sampling mode)
Selecting the forcing function
The forcing function options for the 4210-CVU are listed in Table 3-1. After
configuring the device terminals (Terminal settings), measurement speed
(Speed), and the test mode (Mode), a forcing function can be selected from the
Forcing Function drop-down menu (see Figure 3-12).
Table 3-1
Forcing functions: DC bias settings and AC drive settings
Forcing Function Test mode DC bias condition AC drive condition **
FFMO window
example
CVU voltage bias Sampling PreSoak,
DC bias
-30 V to 30 V frequency 1 kHz to 10 MHz Figure 3-12
voltage 10 mV to 100 mV
CVU voltage sweep* Sweeping PreSoak,
Start, Stop,
Step
-30 V to 30 V frequency 1 kHz to 10 MHz Figure 3-17
voltage 10 mV to 100 mV
Forcing Function (click to
open drop-down menu)
AC Drive Conditions
DC bias conditions
Measure settings
Test Conditions
Open/short/load
cable length compensation
Status
Advanced settings
