• A sequence of tests for an entire project plan, which may include multiple prober
touchdowns for a single semiconductor site (or die):
– For one site
– For multiple sites
• View test results numerically and graphically.
• Analyze test results using built-in parameter extraction tools.
• View the analysis results numerically and graphically.
• Interactively build and edit test / execution sequences using the project navigator.
Graphical User Interface

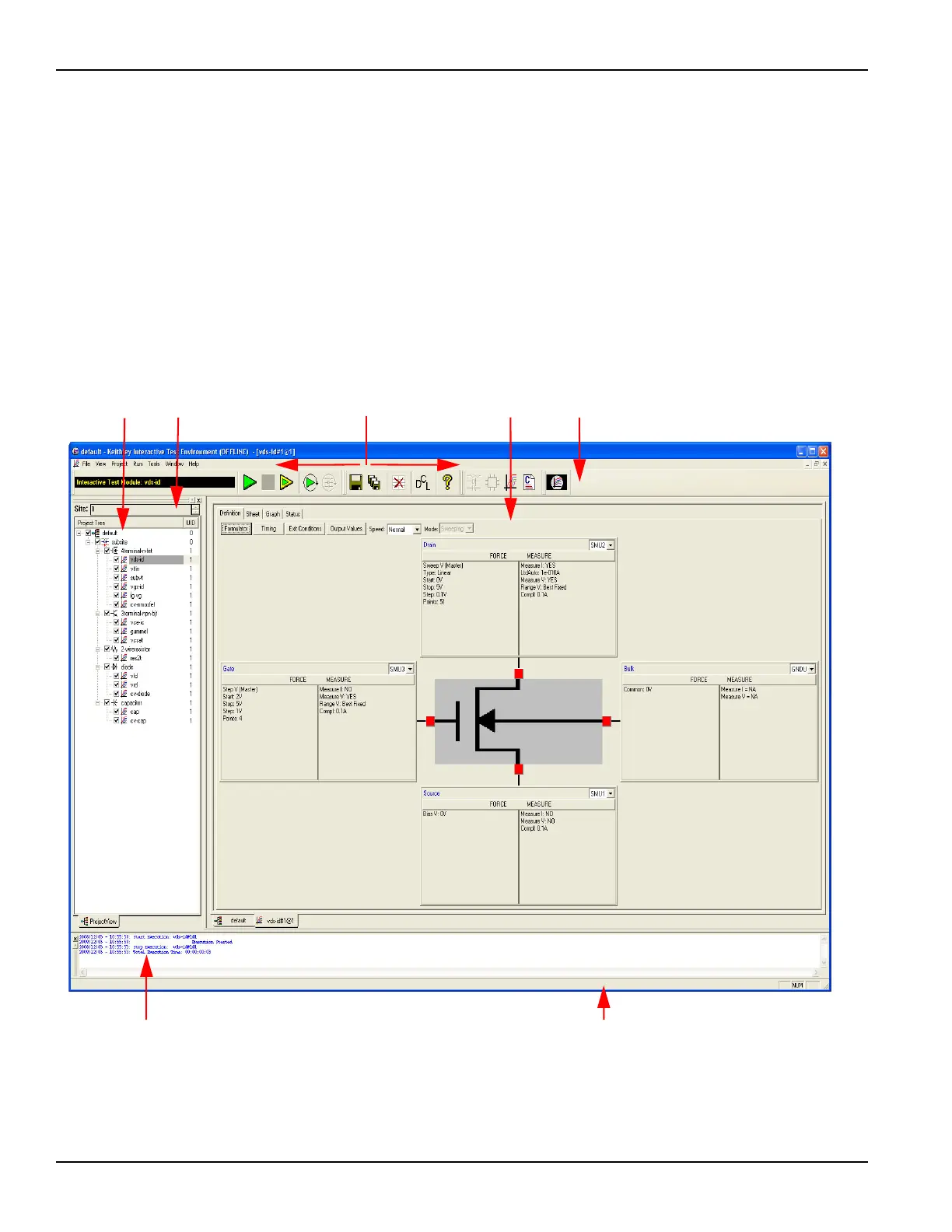

Figure 2-1 shows the KITE GUI interface. The parts of the GUI are summarized below the figure.
Figure 2-1
KITE interface overview
12 4 53
67
