Section 4: How to Control Other Instruments with the Model 4200-SCS Model 4200-SCS User Manual
Open the project plan window
In the project navigator, double-click probesubsites to open the project plan window. For this
tutorial, five sites on a wafer are to be tested. As shown in Figure 4-29, set up the project plan as
follows and click the Apply button at the bottom right-hand corner of the window:
1. Enable ( √ ) Project Initialization Steps
2. Enable ( √ ) Project Termination Steps
3. Start Execution at Site: 1
4. Finish Execution at Site: 5

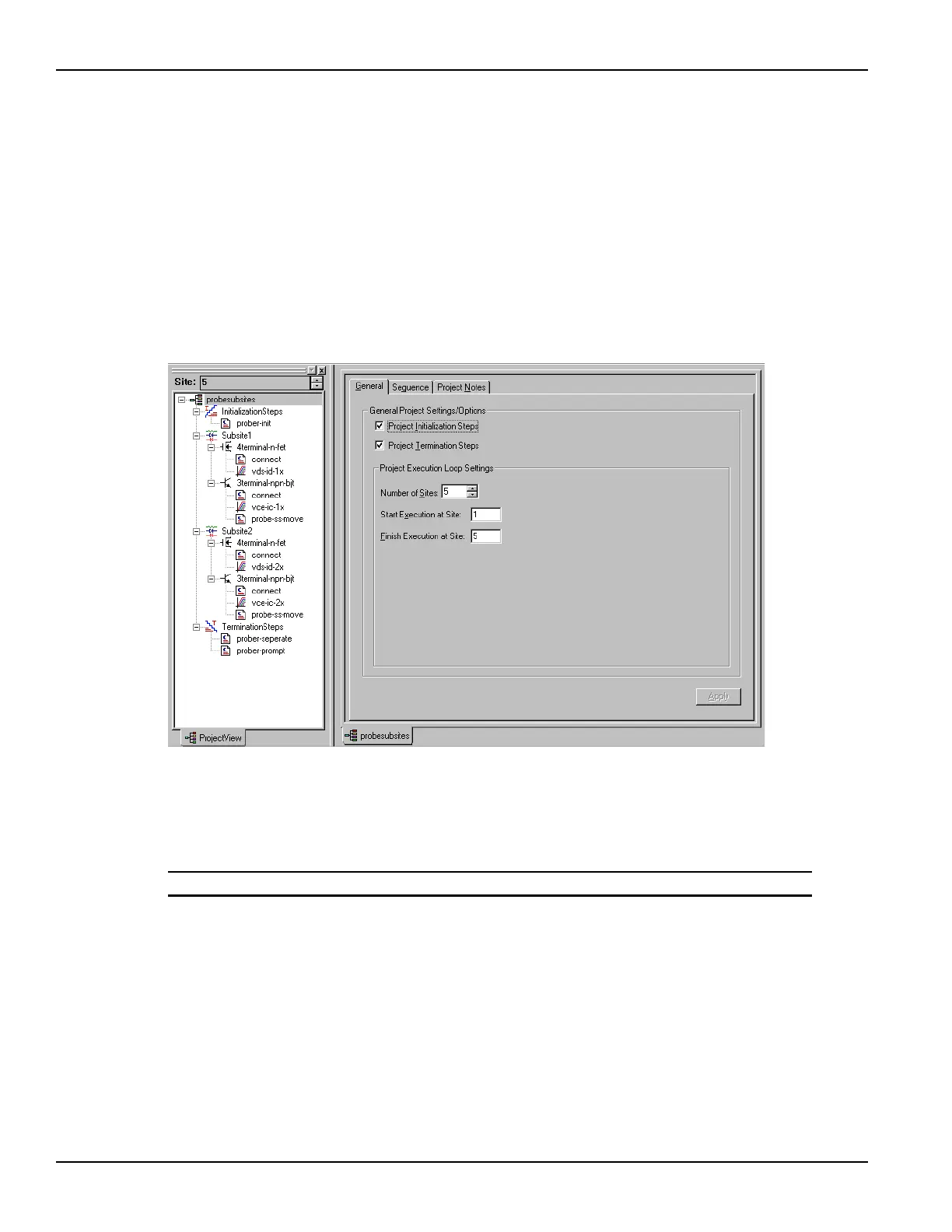

Figure 4-29
Modified project plan settings
Test descriptions
Test descriptions for the probesubsites project are provided in Tabl e 4 -5 . Tests can be opened in
the workspace by double-clicking them in the project navigator.
NOTE The connect UTMs are used to control the switch matrix.
