Model 4200-SCS User’s Manual Section 1: Getting Started

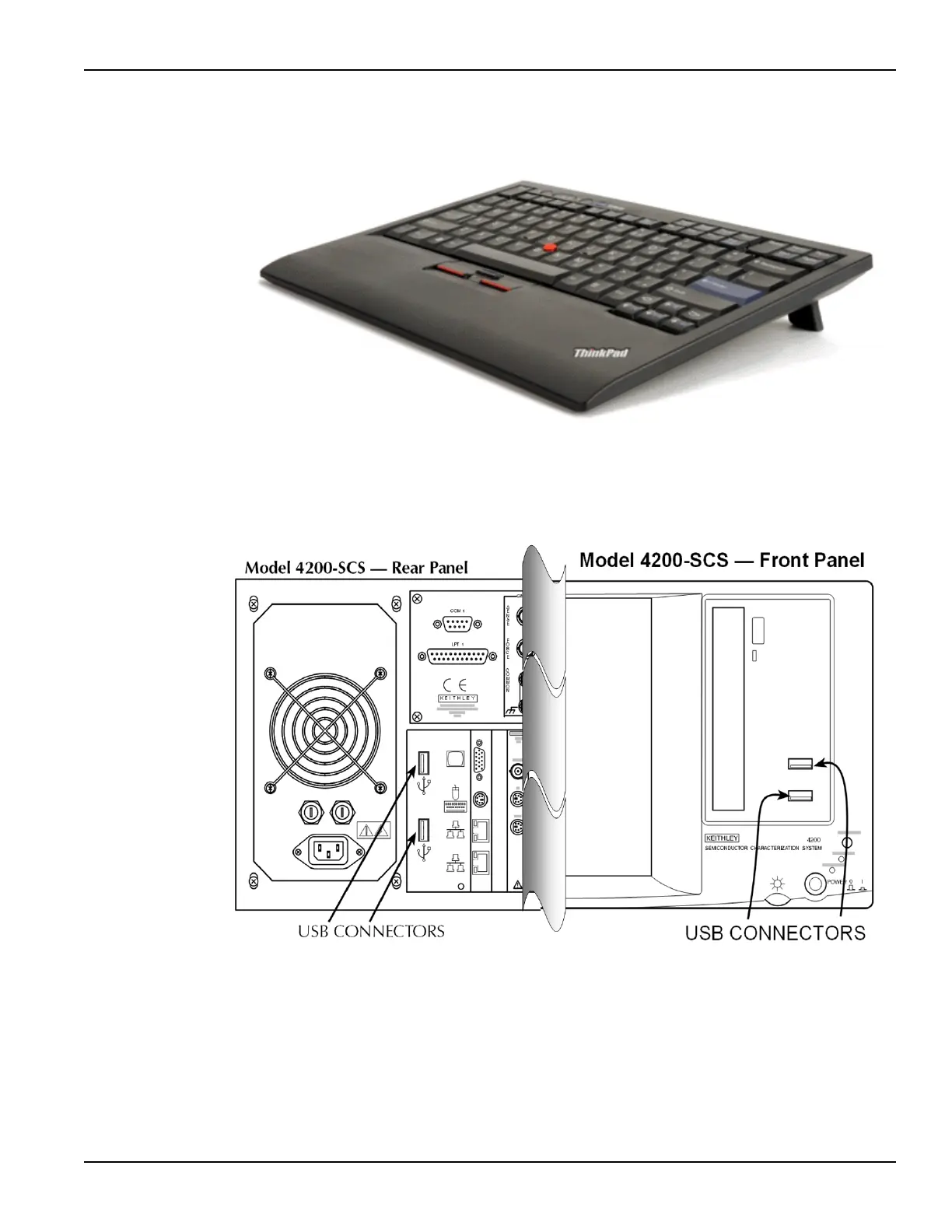

Figure 1-2
Model 4200-SCS keyboard
To use an optional mouse, connect a USB mouse into any of the four 4200-SCS USB ports.
Figure 1-3
Keyboard connections
Connecting GPIB instruments
The 4200-SCS can control one or more external instruments by way of the IEEE-488 General
Purpose Instrument Bus (GPIB). Instruments typically used in a test system with the 4200-SCS
include a switch matrix and a C-V meter. Figure 1-4 shows how to connect GPIB instruments to
the 4200-SCS.
