Model 4200-SCS User’s Manual Section 3: Common Device Characterization Tests

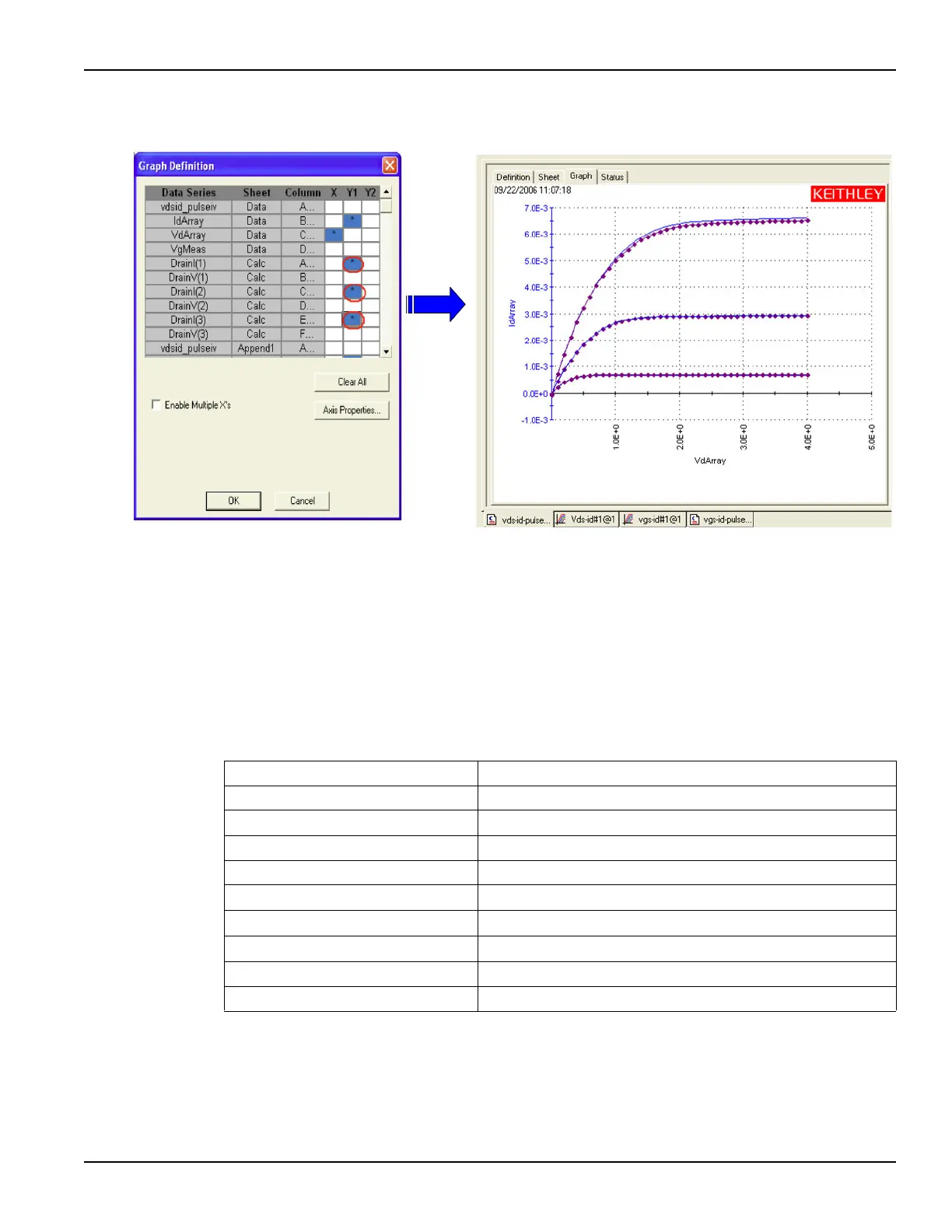

Figure 3-48
Graph Definition dialog box and resulting graph that shows the three added curves
Pulse IV UTM descriptions
The pulse IV user library contains modules required to provide low duty cycle
pulsed IV testing. The modules contained in the pulse IV user library are listed in
Table 3-3 with detailed information following the table.
Table 3-3
Pulse IV UTMs
User Module Description
cal_pulseiv Performs a cable compensation routine.
vdsid_pulseiv Performs a pulsed Vd-Id sweep.
vdId_Pulse_DC_Family_pulseiv Performs a Pulsed vs. DC Vd-Id sweep.
vgId_DC_DC_pulseiv Performs a Pulsed vs. DC Vg-Id sweep.
vgsid_pulseiv Performs a pulsed Vg-Ig sweep.
scopeshot_cal_pulseiv
Used to display a single Pulse IV scopeshot_pulseiv.
scopeshot_pulseiv Displays a single Pulse IV scopeshot.
vdsid_pulseiv_demo Performs a pulsed Vd-Id sweep, with simplified parameter list.
vgsid_pulseiv_demo Performs a pulsed Vg-Id sweep, with simplified parameter list.
