2-40 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 2: Model 4200-SCS Software Environment Model 4200-SCS User’s Manual

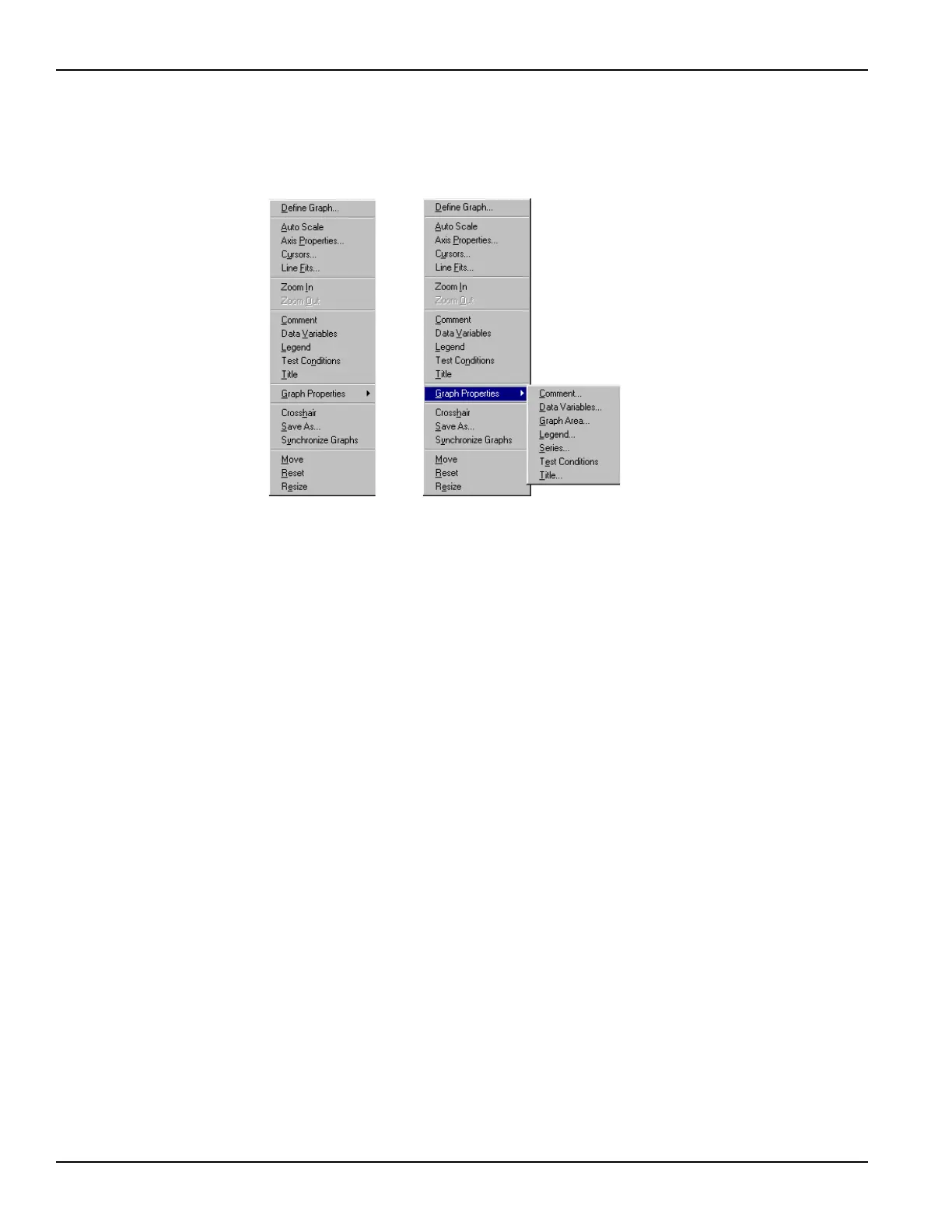

Figure 2-30
Graph settings menu
• Menu access method II: In the tools menu of the KITE window, select graph settings. The
menu that appears is identical to the pop-up menu shown in Figure 2-30.
Understanding the graph settings menu
Each item of the graph settings menu is summarized below:
• Define graph: Defines the parameters to be graphed and the axes on which these
parameters are to be graphed. For more information, refer to Defining data to be graphed
on page 2-42.
• Auto scale: Automatically scales all axes at a single, chosen time. For more information,
refer to the Reference Manual, Automatically scaling the axes, page 6-216.
• Axis properties: Opens the Axes Properties window, which is the main access point for
graph scaling and scale formatting. For more information, refer to the Reference Manual,
Defining the axis properties of the graph, page 6-212.
• Cursors: Opens the Cursors window, from which you can select and format cursors that
display the precise numerical coordinates of specific points on the plot lines. For more
information, refer to the Reference Manual, Numerically displaying plot coordinates using
cursors, page 6-228.
• Line fits: Allows you to fit lines directly to Graph tab plots. Up to two times. Select from the
following types:
–Linear (line through two data points)
–Regression (regression line)
–Exponential
– Logarithmic
–Tangent
• Zoom in: Allows you to enlarge and examine a small, selected part of the graph. For more
information, refer to the Reference Manual, Temporarily enlarging a selected area of the
graph by zooming, page 6-278.
• Zoom out: Restores a graph to the original or previously zoomed size. For more
information, refer to the Reference Manual, Temporarily enlarging a selected area of the
graph by zooming, page 6-278.
The menu
The menu, showing
Graph Properties
submenu
