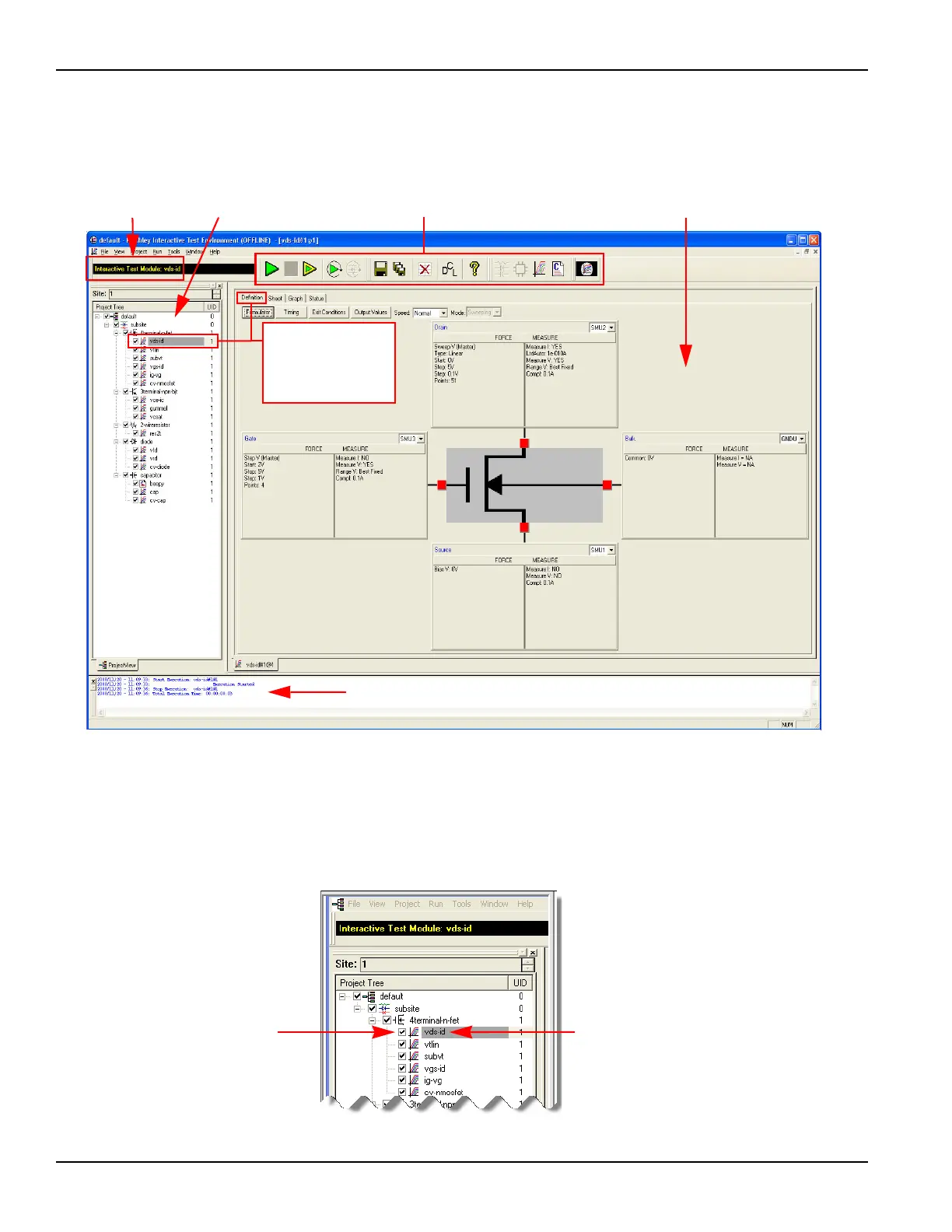

Figure 1-33 is an example of the KITE interface default project with the vds-id test selected.
Figure 1-33
KITE interface default project shown with vds-id test selected
Locate and run the vds-id test module
To locate the vds-id test module go to the project navigator as shown in Figure 1-34.
Figure 1-34
Interactive Test Module vds-id
Project Navigator
Message Area
Toolbar
KITE Workspace
Selected Test
vds-id test will be
selected by default,
and the Definition tab
will display the test
options.
Double click the vds-id test
icon, and the test Definition
tab as shown in Figure 1-33 is
displayed.
The checkbox for vds-id must be
checked in order to run the test.
If unchecked, click the checkbox
to insert a 4.
