Model 4200-SCS User’s Manual Section 3: Common Device Characterization Tests
Executing subsite cycling
With the Subsite Plan in the project navigator selected and enabled, subsite
cycling is started by clicking the Run Test/Plan and Cycle Subsites button (see
Figure 3-72):
• If the Cycle Mode is selected for subsite cycling, all cycles of the Subsite Plan will run.
• If using the Stress / Measure Mode is being used and there are enabled Targets, the
Subsite Plan will terminate when all enabled Targets are reached.
• Otherwise, all cycles of the Subsite Plan will run.

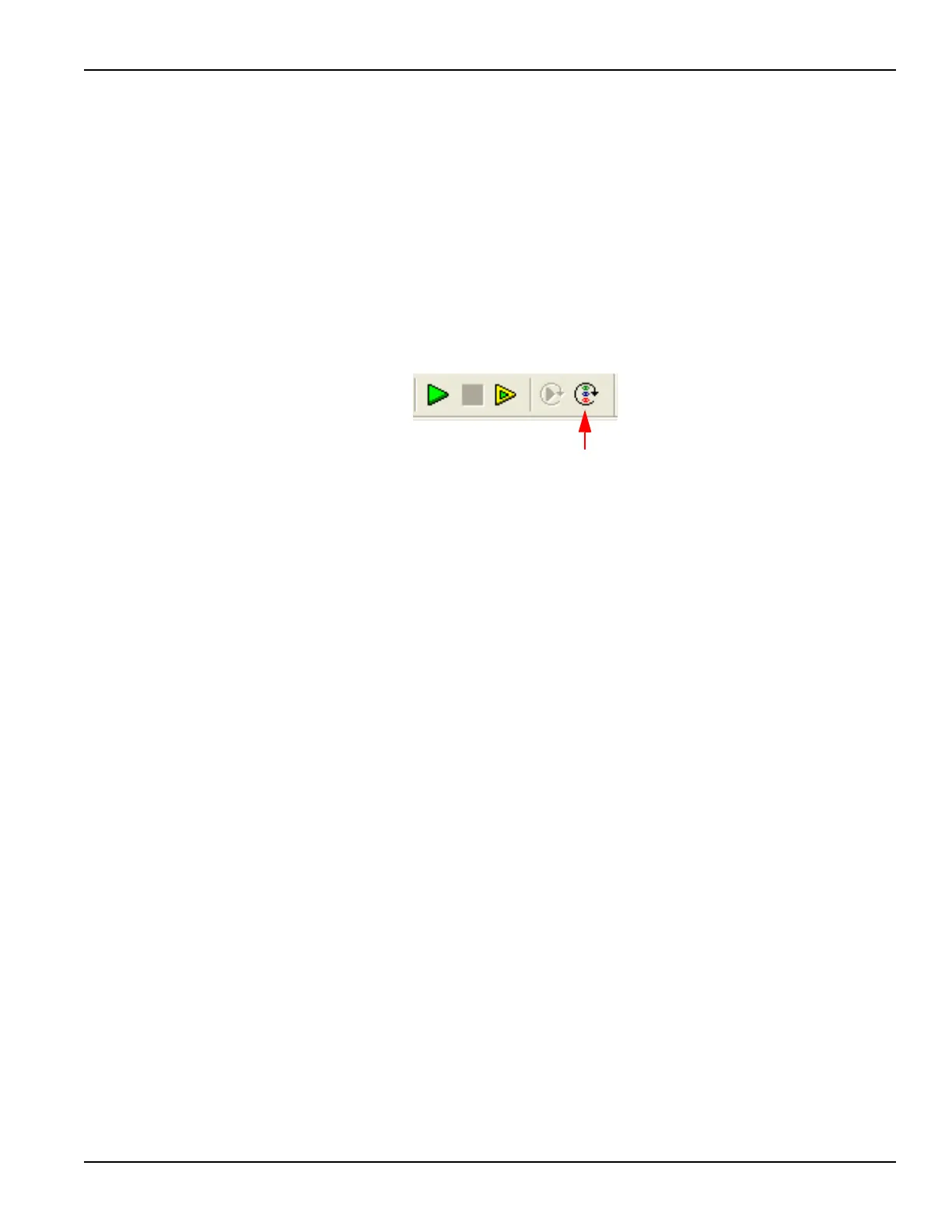

Figure 3-72
Starting subsite cycling
Multiple subsite cycling
If two or more subsites are configured for subsite cycling, they can all be run
consecutively. When the first subsite is finished cycling, the next subsite will start
automatically.
Multiple subsite cycling is started from the project level, rather than the subsite
level. In the project navigator, select and enable the Project and then start cycling
as shown in Figure 3-72.
Subsite cycling data sheets
Spreadsheet Data for the Subsite Plan is acquired in the Subsite Data sheet. With
the Subsite Plan opened in the workspace, the data sheet is displayed by clicking
the Subsite Data tab.
Cycle Mode data sheet
Figure 3-73 shows an example data sheet for a Subsite Plan that has one device.
Column A lists the cycles that were run. For the example in Figure 3-73, four
cycles were run. Columns B, C, D and E lists the readings for the four Output
Values.
Click Run Test/Plan and Cycle Subsites button to start subsite cycling.
