Keithley 4200-SCS User Manual

4200-900-01 Rev. K / February 2017 Return to Section Topics 3-33
Model 4200-SCS User’s Manual Section 3: Common Device Characterization Tests

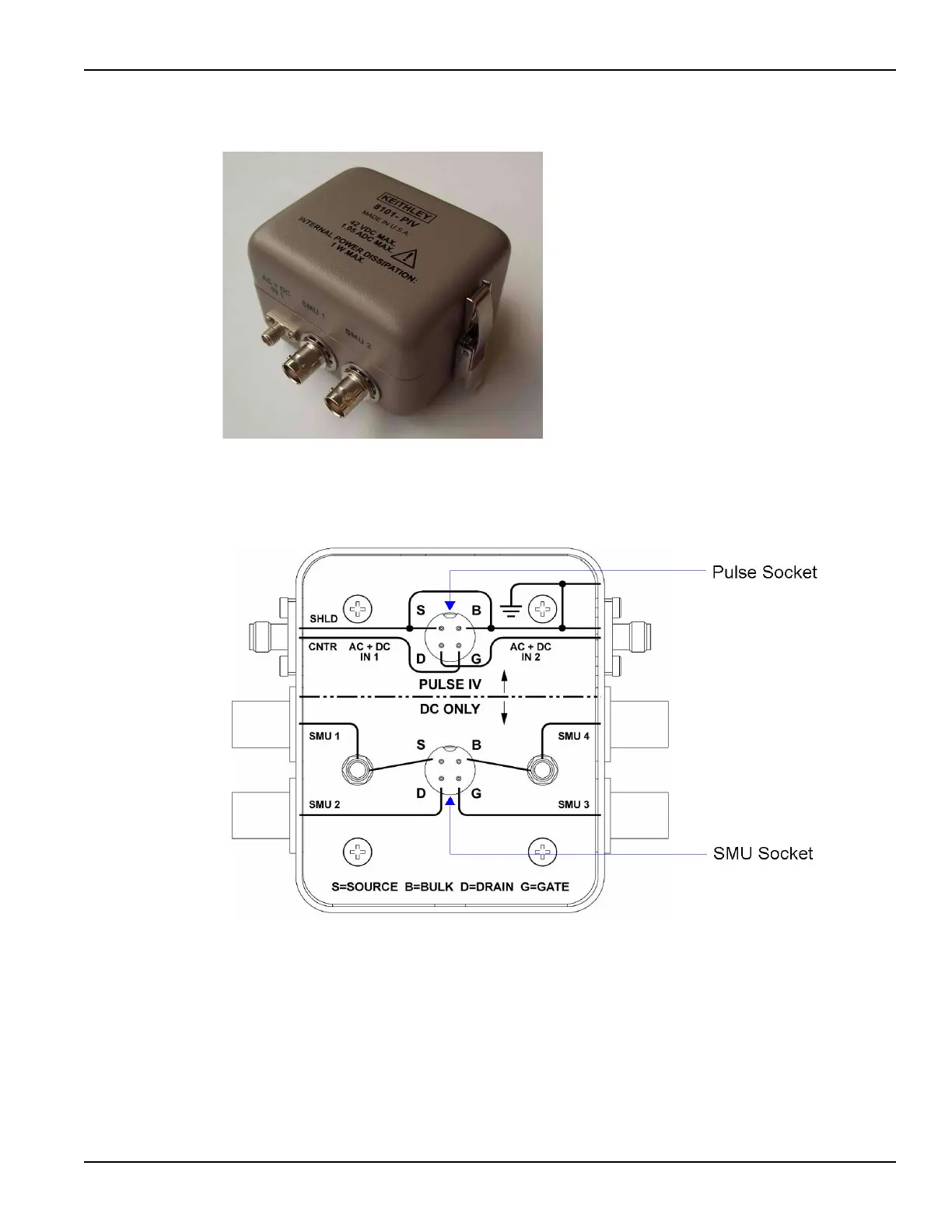

Figure 3-28
Model 8101-PIV test fixture
Figure 3-29
Model 8101-PIV schematic
Prober Interconnect
The PIV-A package provides both DC and Pulse capability to the DUT pins
without re-cabling or switching. The key to this capability is the RBT which uses
passive electrical components to combine the low frequency DC signals with the
high frequency pulse signals. For more information about the 4205-RBT, refer to
Reference manual, Pulse Projects for Models 4200-PIV-A and 4200-PIV-Q, page
12-2.
