Model 4200-SCS User’s Manual Section 3: Common Device Characterization Tests
Figure 3-18
CVU Voltage Sweep output
CVU Voltage List Sweep

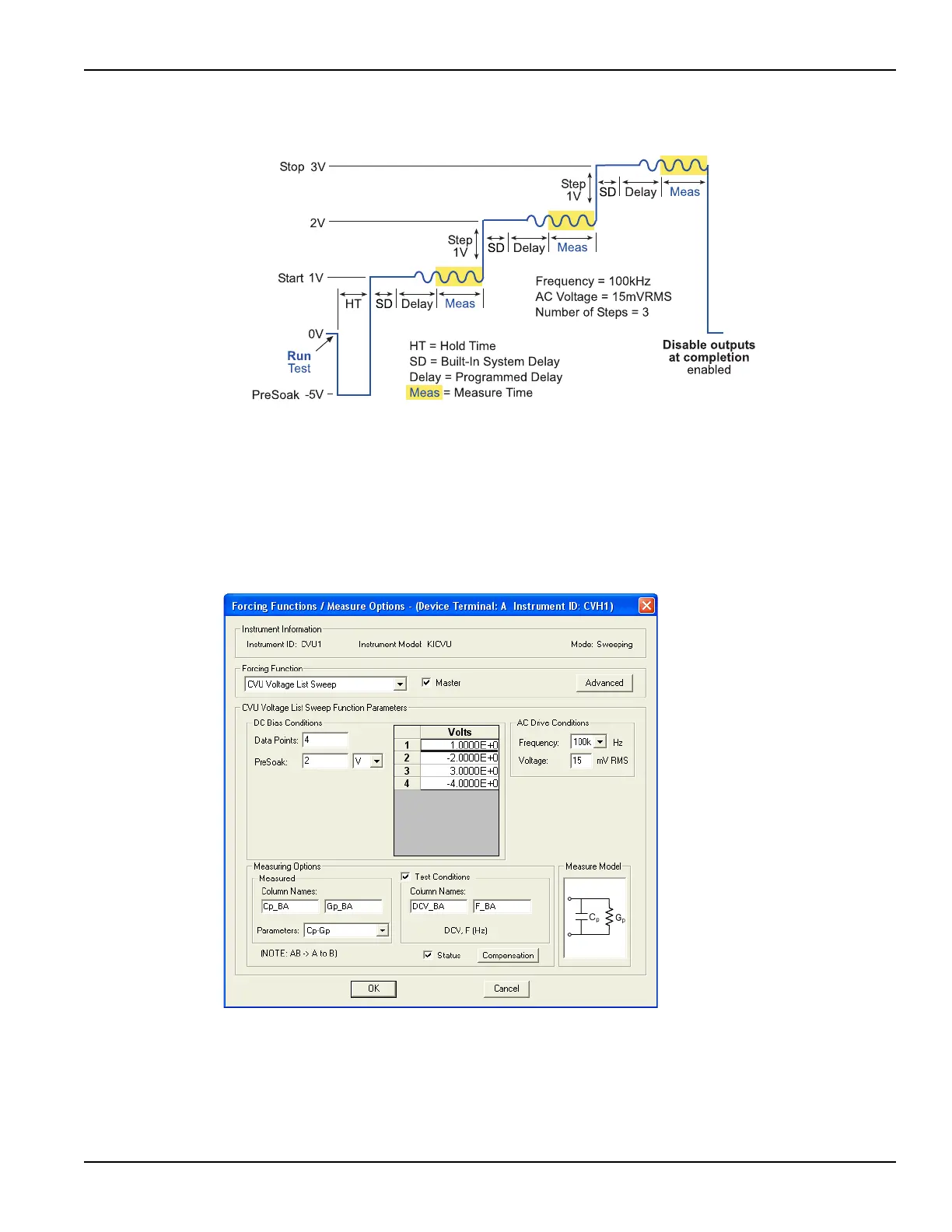

Figure 3-19 shows an example of a FFMO window with CVU Voltage List Sweep
selected as the forcing function to measure Cp-Gp. The Sweeping test mode
must be selected for this test (see Figure 3-11).
Figure 3-19
Forcing Function: CVU Voltage List Sweep
When this test is run (see Figure 3-20), the following force-measure sequence
occurs:
1. The DC source goes to the PreSoak voltage of 2 V for the hold time period.
2. The DC Bias goes to the first sweep point voltage (1 V).
