Keithley 4200-SCS User Manual

3-42 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 3: Common Device Characterization Tests Model 4200-SCS User’s Manual

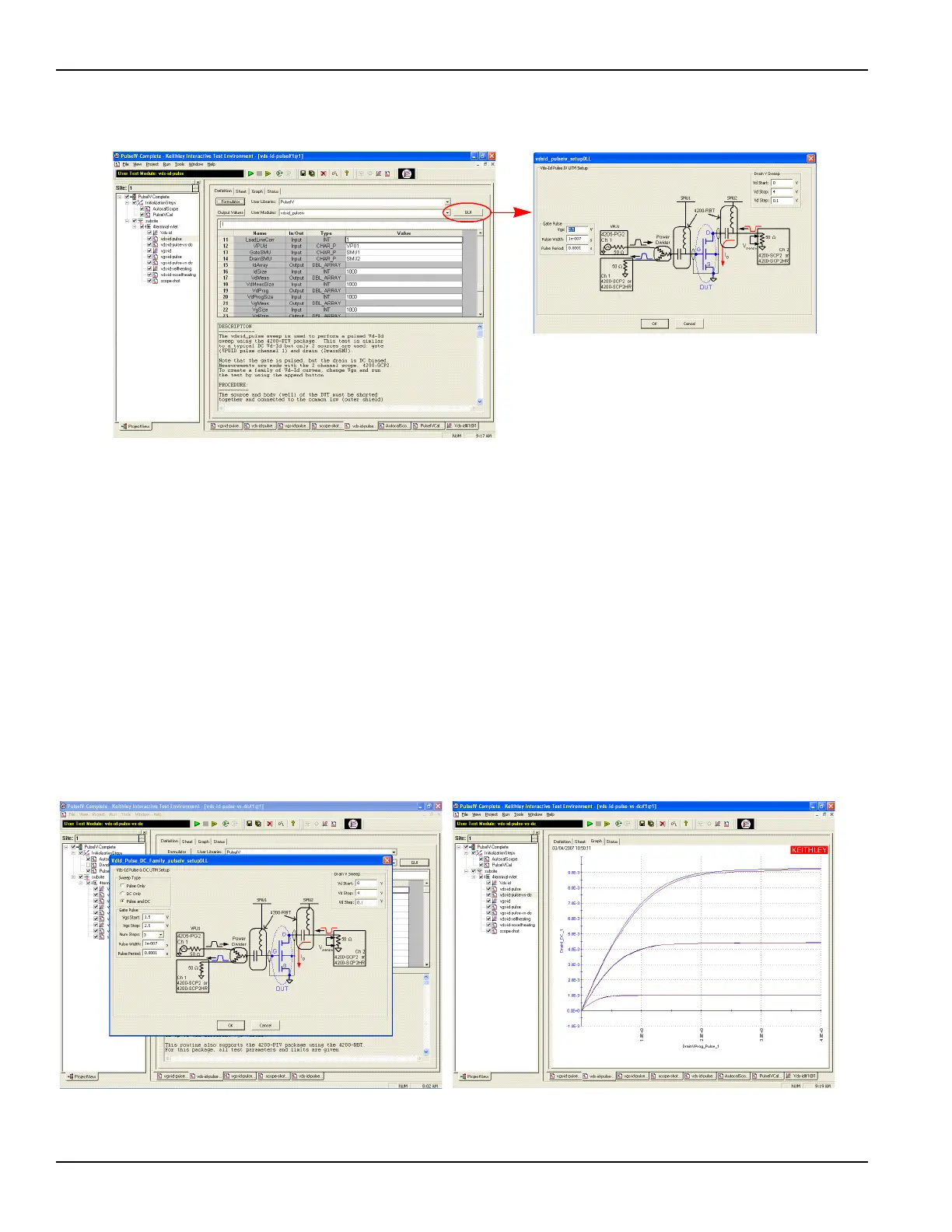

Figure 3-40
Default Definition tab and GUI For vds-id-pulse
Running vds-id-pulse-vs-dc UTM
The default settings are the same as the vds-id-pulse UTM, with the addition of
the DC measurement parameters (see Figure 3-41):
To run vds-id-pulse-vs-dc UTM:
1. If measurement parameters (pulse average, NPLC, measure range) need to be set, use the
definition table.
2. (Optional) If only source parameters need to be changed, use the UTM GUI by clicking the
GUI button on the vds-id-pulse-vs-DC test. Modify the source parameters in the GUI,
and click OK when finished.
3. Click the green Run button. For a test with three curves and 40 points per curve, the test
should take about 1.5-2 minutes. During the test, neither the Graph tab or Sheet tab is
updated.
Figure 3-41
Default definition and typical graph for vds-id-pulse-vs-dc
