Keithley 4200-SCS User Manual

4200-900-01 Rev. K / February 2017 Return to Section Topics 2-9
Model 4200-SCS User’s Manual Section 2: Model 4200-SCS Software Environment

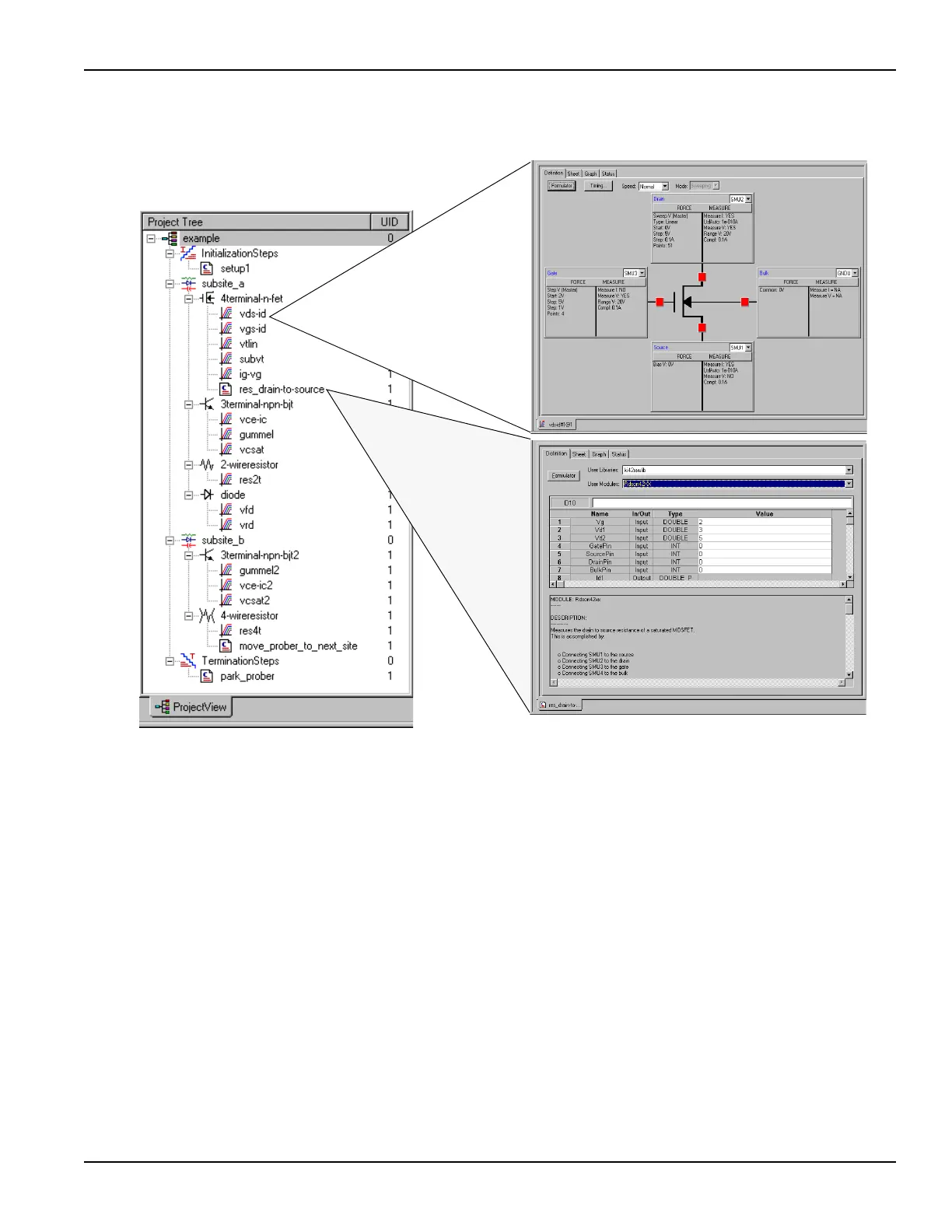

Figure 2-3
ITMs and UTMs in the project navigator
Defining an ITM
An ITM is defined by the ITM definition tab (displayed by double-clicking the ITM name in the
project navigator) illustrates and explains the ITM definition tab (Figure 2-4 defines the vds-id
ITM, one of the ITMs in the example project plan shown in Figure 2-2 and Figure 2-3). See
Reference Manual, Specifying environment preferences, page 6-338.
ITM
UTM
