Keithley 4200-SCS User Manual

4200-900-01 Rev. K / February 2017 Return to Section Topics 4-31
Model 4200-SCS User Manual Section 4: How to Control Other Instruments with the Model 4200-SCS

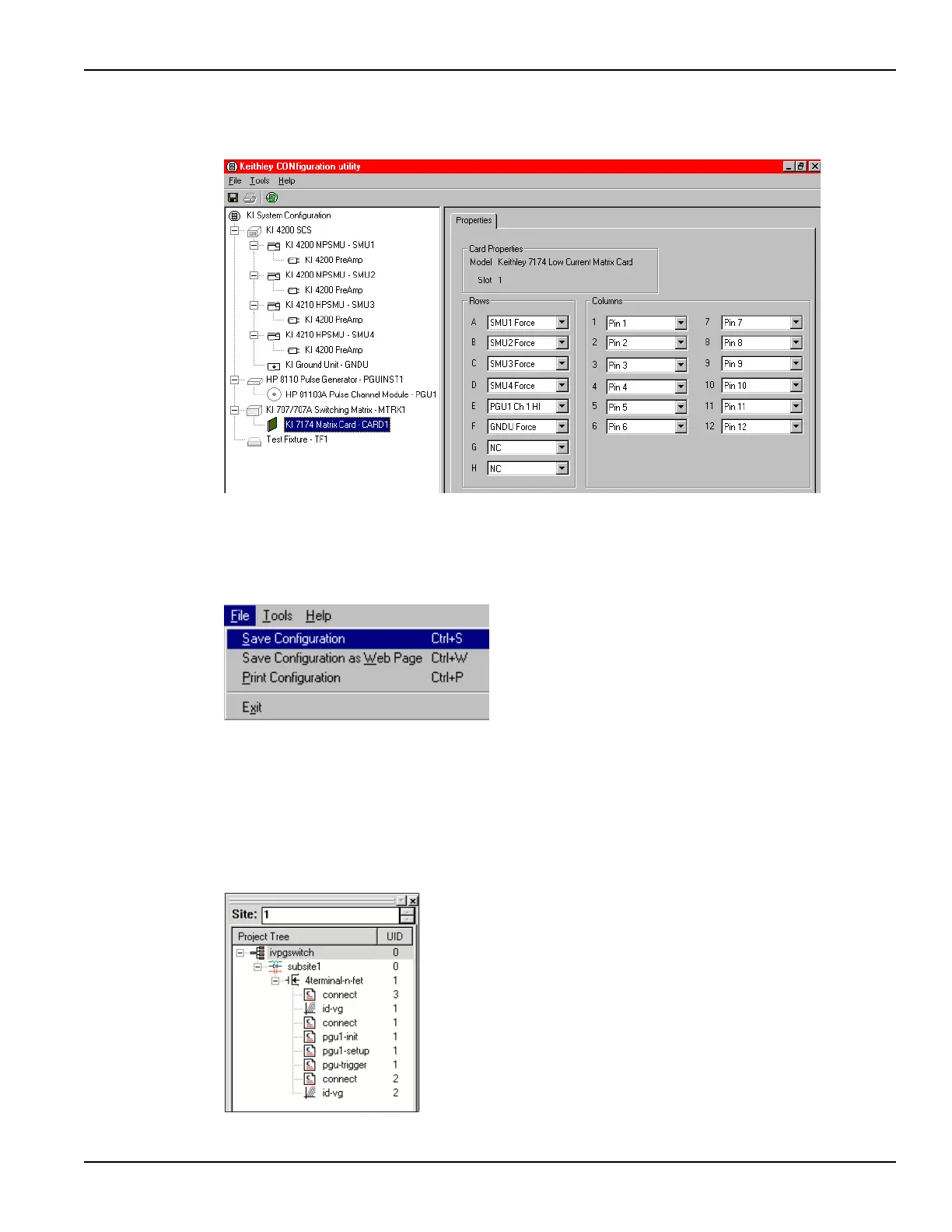

Figure 4-44
Connecting the switch matrix
8.Save the configuration using the KCON File menu, as illustrated in Figure 4-45.
Figure 4-45
Saving the system configuration
Open the ivpgswitch project
Open the ivpgswitch project from the File menu (select Open Project). The project navigator
for the ivpgswitch project is shown in Figure 4-46.
Figure 4-46
Project navigator: ivpgswitch project
