Keithley 4200-SCS User Manual

4-30 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 4: How to Control Other Instruments with the Model 4200-SCS Model 4200-SCS User Manual

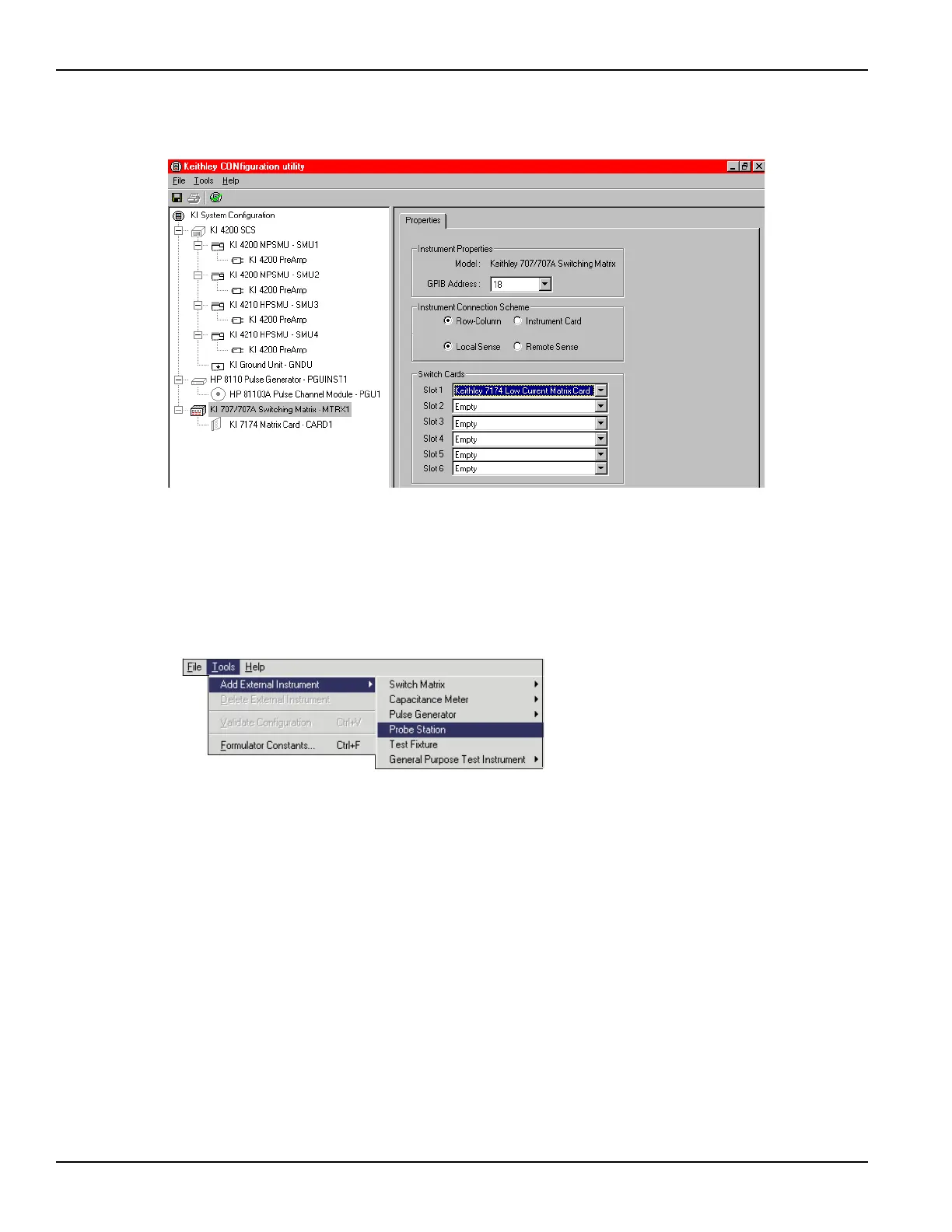

Figure 4-42
Configuring the switch matrix
6. Add a manual probe station to the system configuration using the KCON Tools menu as
illustrated in Figure 4-43. If a test fixture is already part of the configuration, it must be
removed before the probe station can be added. To remove any external component from
the system configuration, select it in the configuration navigator and press the DELETE key.
Figure 4-43
Adding a probe station
7. Connect the instrument terminals and probe station pins to the switch matrix by selecting
the KI 7174 Matrix Card - CARD1 in the configuration navigator and configuring it as
illustrated in Figure 4-44. Detailed information about switch matrix configuration can be
found in the Reference Manual, Appendix A, Creating Project Prompts.
