Keithley 4200-SCS User Manual

2-26 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 2: Model 4200-SCS Software Environment Model 4200-SCS User’s Manual
Understanding device libraries
A Device Library is comprised of devices stored in folders that are organized by device category.
To create a new device category, create a new folder in the C:\S4200\kiuser\Devices
directory.
*2
To provide project access to additional device libraries, or to change the KITE Device
Library that appears by default, use the KITE Options window:
•Select Options in the Tools menu.
• On the Directories tab of the KITE Options window that appears, choose Device Libraries
in the Show Directories for: box. See Figure 2-16.

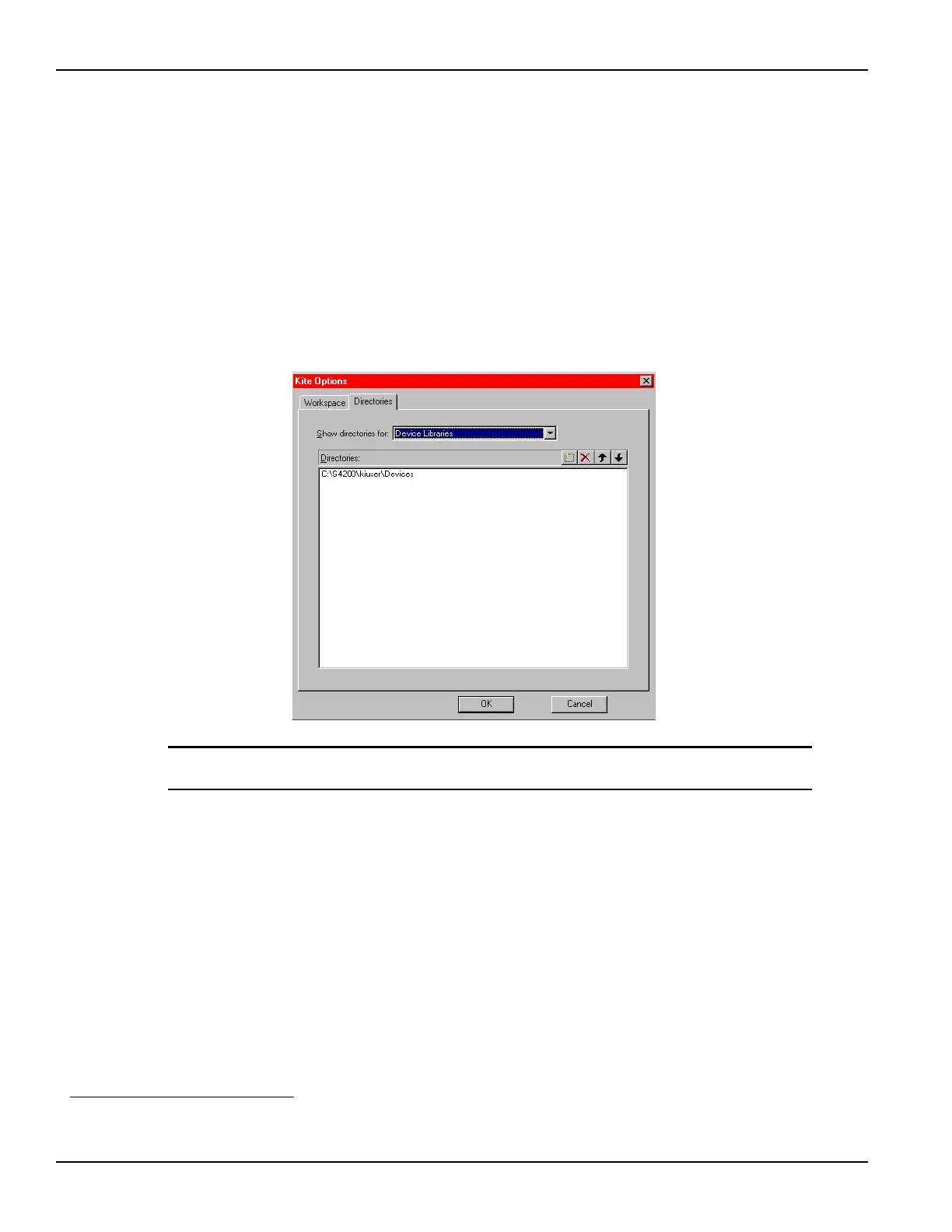

Figure 2-16
Device library access selection
NOTE For more information about Device Library access selection, refer to the
Reference Manual, Customizing directory options, page 6-340.
Each device stored in a Device Library contains the following three types of files:
• A Keithley device (.kdv) file that follows the Microsoft
®
Windows
®
.ini file format.
• A small bitmap; 16 x 16 dpi (.bmp) file for the device icon that is displayed in the project
navigator.
• A large bitmap; 120x100 dpi (.bmp) file for the device graphic that is displayed on the
definition tab of each ITM that tests the device.
Figure 2-17 shows the files in the Mosfet Device Library folder. Note that a .kdv file and two
bitmap files are listed for each device.
2. The C:\S4200\kiuser\Devices is the factory-default Devices directory. You can also create a new folder in
another Devices directory, (for example, C:\S4200\YourName\Devices).
