Model 4200-SCS User Manual Section 4: How to Control Other Instruments with the Model 4200-SCS

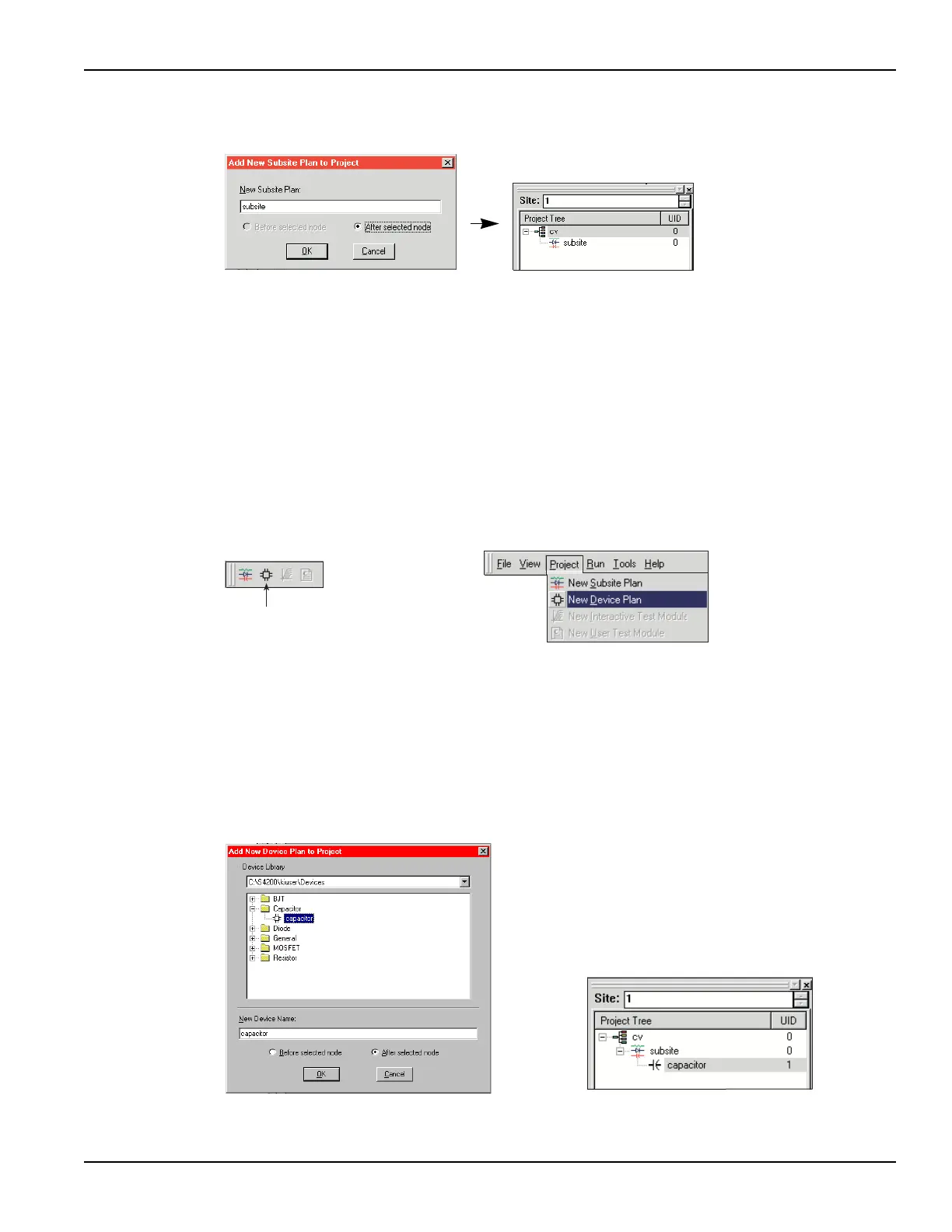

Figure 4-65
Add a new subsite plan
Add a device plan
To add a device plan:
1. A device plan is a collection of tests to be performed on a particular device. Open the Add
New Device Plan to Project window by clicking the Add new Device Plan button on the
toolbar (see Figure 4-66A). It can also be opened by clicking the New Device Plan item on
the Project menu (see Figure 4-66B).
Figure 4-66
Add a new device plan to a KITE project
2. In the window to add a device plan (Figure 4-67A), double-click the Capacitor folder to
open it, and then click Capacitor to select that device plan name.
3. With the capacitor device plan selected, as shown in Figure 4-67A, click Ok at the bottom of
the window. The device plan will appear in the project navigator as shown in Figure 4-67B.
Figure 4-67
Add a device plan
A. Window to specify the
subsite plan name
B. Project navigator
Click to add device plan
OR
A. Add new device plan button
B. Project menu
Click to add device plan
A. Window to specify device plan name B. Project Navigator
