Step E: Update and save the subsite setup configuration
Update the window and save your settings or setting changes by clicking the
Apply button.
NOTE Subsite Setup tab calculations do not execute / update until you click Apply (see
Figure 3-58).
Figure 3-58
Saving the subsite setup configuration

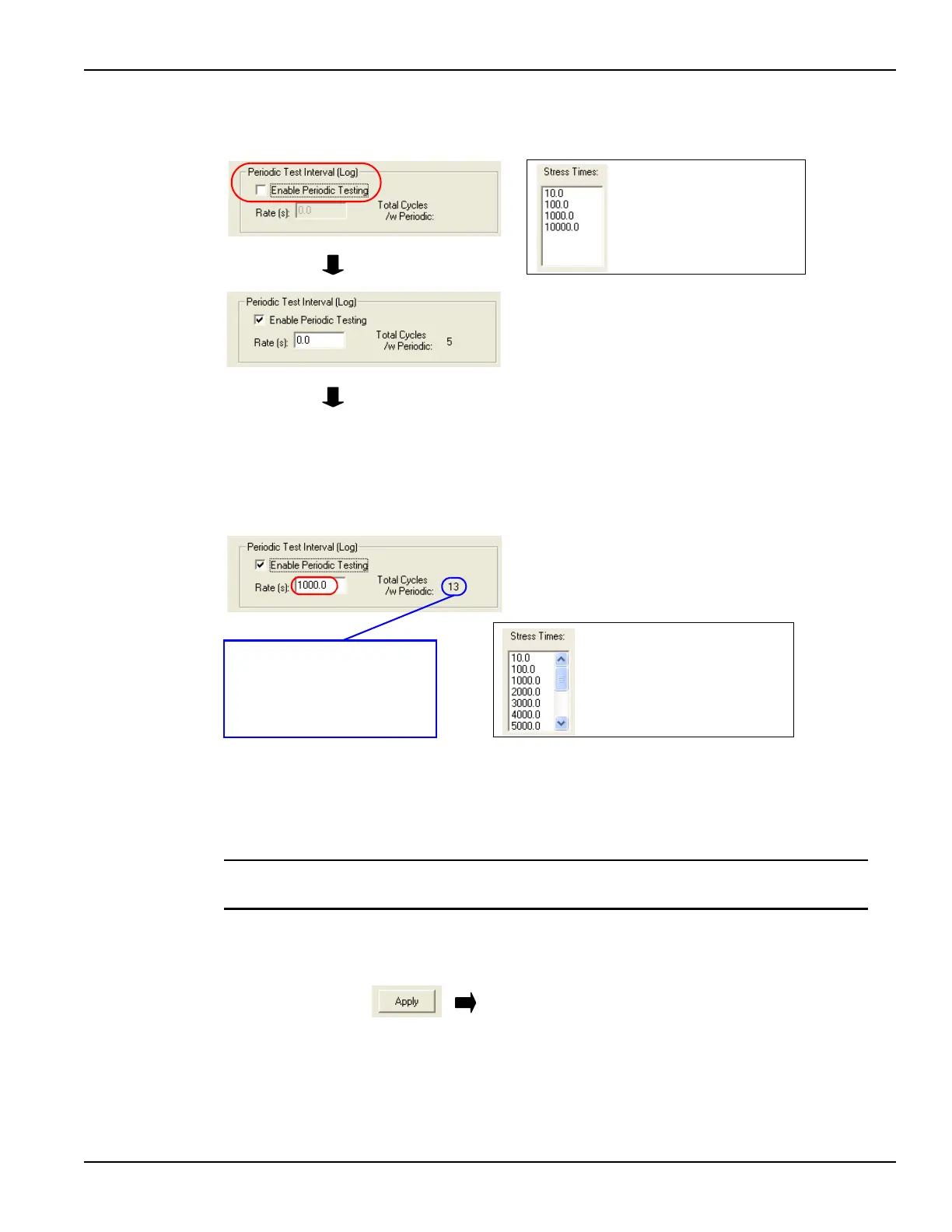

In the Rate (s) field, enter the
periodic interval (in seconds) at
which stressing is to be stopped and
tests are to be performed: in addition
to any intervals that are specified in
the Stress / Measure Cycle Times
KITE calculates the Total Cycles /w
Periodic: the total number of cycles:
based on the Stress / Measure
Cycle Times and the Periodic Test
Interval.This value may not exceed
128.
For the particular example
at left, these were the Stress
Times before entering a
Periodic
Test Interval.
These were the Stress Times after
entering a Periodic Test Interval.
The Subsite Setup window updates
and settings are saved.
