Keithley 4200-SCS User Manual

4200-900-01 Rev. K / February 2017 Return to Section Topics 2-35
Model 4200-SCS User’s Manual Section 2: Model 4200-SCS Software Environment

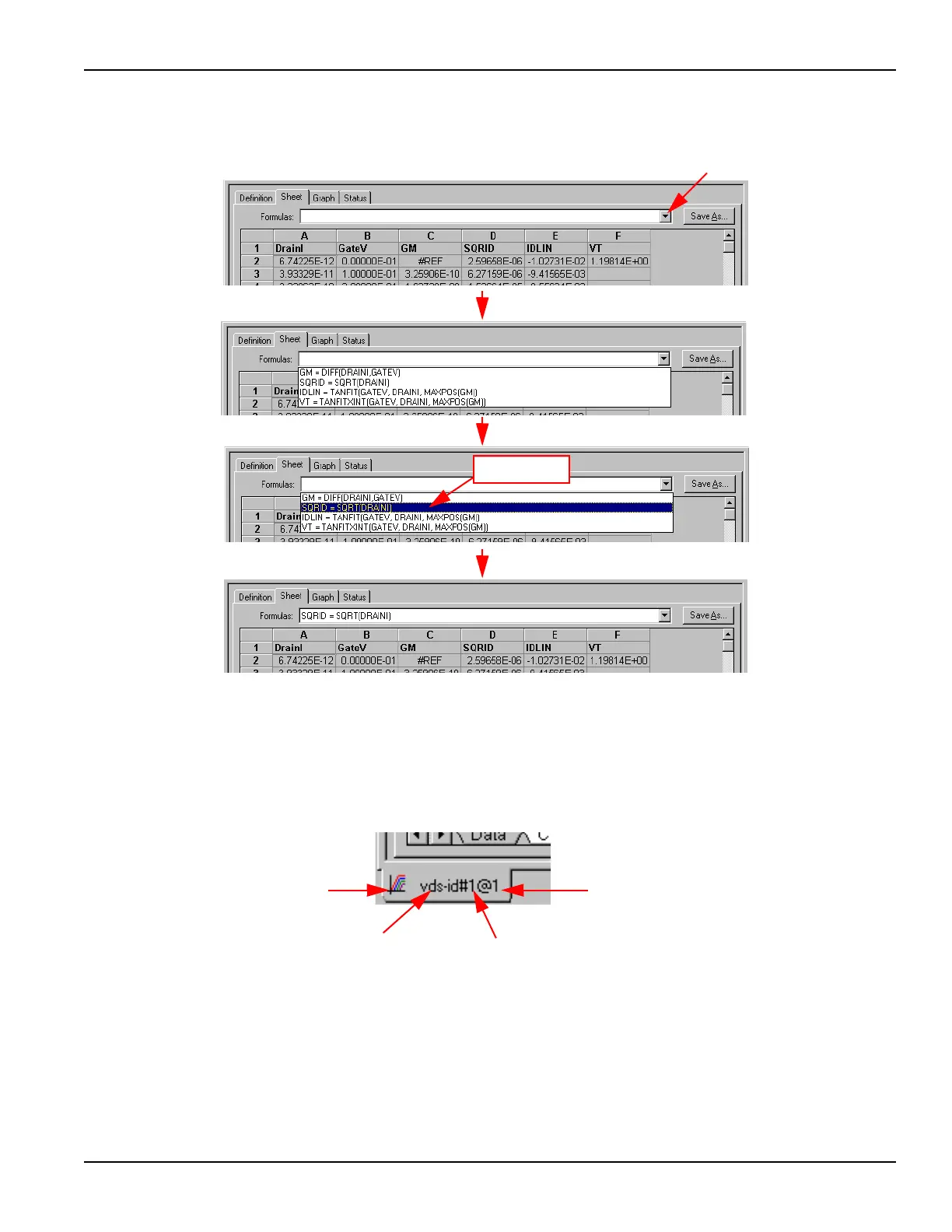

Figure 2-24
Displaying a formulator equation using the formula box
Understanding the data-source identifier
The ITM or UTM window tab at the bottom of all Sheet tab windows identifies the source of the
data in the Sheet tab, as shown in Figure 2-25.
Figure 2-25
Data-source identifier
Click
Click / Select
The type of test
(ITM or UTM)
Name of the test
Instance of the named test
Number of the site at which
test was performed.
in the project plan: 1st,
.
from which the
data was obtained.
from which the
data was obtained.
this instance of the named
2nd, 3rd, and so on. Same as the
UID number in the Project
Navigator.
