Section 2: Model 4200-SCS Software Environment Model 4200-SCS User’s Manual
Configuring forcing functions for each device terminal
With the definition tab for the ITM open, do the following for each device terminal:
1. On the instrument object for the terminal (Figure 2-4), click the FORCE MEASURE button.
The corresponding Forcing Function / Measure Options window appears. The Forcing
Functions / Measure Options window in Figure 2-9 illustrates typical window features.

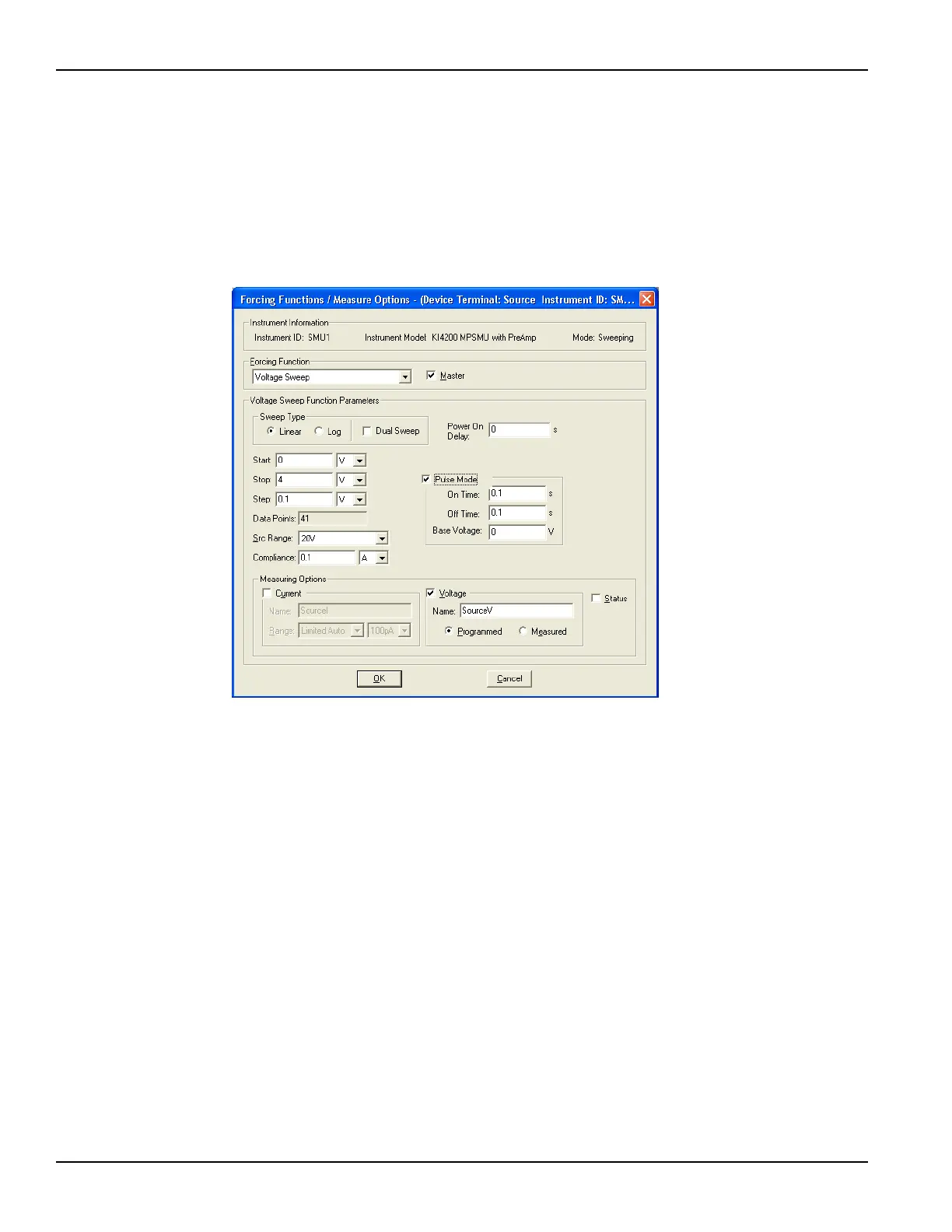

Figure 2-9
Typical SMU forcing functions / measure options window for an existing library ITM
Figures 2-10, 2-11, and 2-12 illustrate basic options and functions for each part of the Forcing
Functions / Measure Options user interface.
