Keithley 4200-SCS User Manual

1-14 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 1: Getting Started Model 4200-SCS User’s Manual

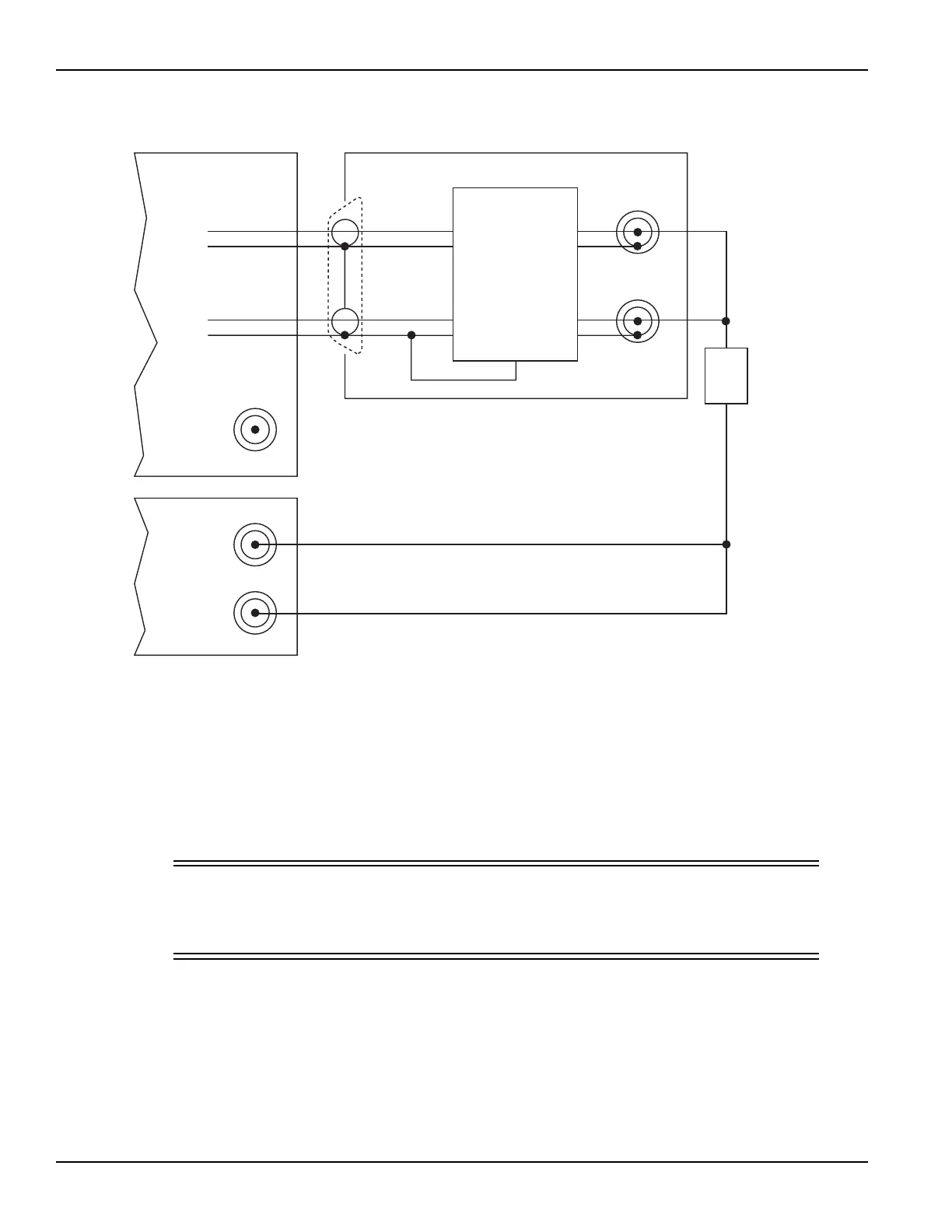

Figure 1-10
Basic SMU/preamp source-measure configuration
DC preamp
PreAmp terminals and connectors
The locations and configuration of the 4200-PA terminals are shown in Figure 1-11. Basic
information about these terminals is summarized below. For additional information about making
preamp signal connections, refer to the Reference Manual, Basic source-measure connections,
page 4-3.
WARNING The preamp terminals can carry exposed hazardous voltages that could result
in personal injury or death if the safety interlock is asserted. See the
Reference Manual, Control and data connections, page 4-20, for additional
information about safety interlock connections.
4200-SMU
or
4210-SMU
FORCE
SENSE
SENSE
GUARD
GUARD
DUT
FORCE
PreAmp
Control
PreAmplifier
SENSE LO
SENSE
FORCE
Ground
Unit
4200-PA
