Model 4200-SCS User’s Manual Section 2: Model 4200-SCS Software Environment

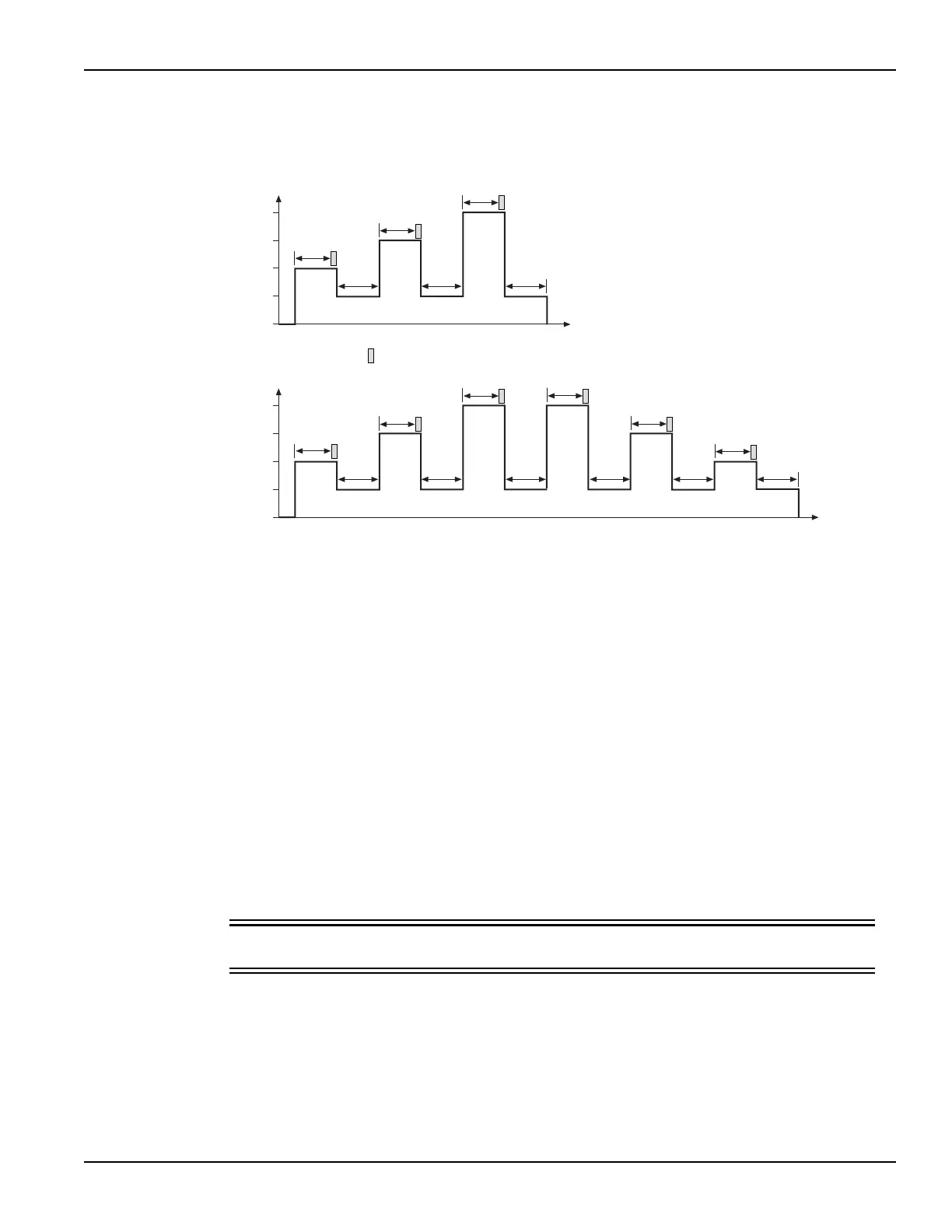

Figure 2-8
Pulse mode examples: Single and dual sweep
How to use the definition tab to configure ITM parameters
This topic describes parameter configuration of a library ITM, in which connections and test modes
are preconfigured. For discussions of general ITM configuration, including creation of new ITMs or
customization of existing ITMs, refer to the Reference Manual, Configuring the Project Plan ITMs,
page 6-86.
After inserting library ITMs into your project, configure the setup for each ITM as described in the
subsections that follow in the order in which they appear.
Match the physical and virtual connections:
1. In the project navigator double-click the ITM that you wish to configure. The definition tab of
the ITM window opens by default (see Figure 2-4).
2. In the definition tab, review the virtual connections for each device terminal, as listed in the
“instrument object” for that terminal (see Figure 2-4).
3. Ensure that the physical device connections match the virtual ( definition tab) device
connections. If necessary, shut down the instrumentation and correct the physical
connections.
CAUTION Physical device-terminal connections must accurately match virtual
connections to avoid bad test results and potential device damage.
= Cumulative Measure Time (Data Point)
Dual Sweep Disabled:
(single sweep)
Dual Sweep Enabled:
6
Data Points
3
Data Points
Time
0V
Base Voltage 1V
Start 2V
Stop 4V
3V
On
Time
Off
Time
Off
Time
Off
Time
Time
0V
Base Voltage 1V
Start 2V
Stop 4V
3V
Off
Time
Off
Time
Off
Time
Off
Time
Off
Time
Off
Time
On
Time
On
Time
On
Time
On
Time
On
Time
On
Time
On
Time
On
Time
