Model 4200-SCS User’s Manual Section 1: Getting Started
Test definition
The test is defined from the test Definition tab shown in Figure 1-35. As shown in the Definition tab,
the device is connected to three SMUs and one Ground Unit (GNDU). In general, SMU3 is used as
a voltage step function to provide four different gate voltages (2V, 3V, 4V, and 5V). SMU2 is used
to perform a 51 point sweep of drain voltage (0V to 5V) at each gate voltage. A current
measurement is performed at each voltage sweep point.
To define a test:
1. The setup for SMUs and the GNDU can be changed. A settings window is displayed by
clicking the appropriate force measure bar as shown in Figure 1-35.

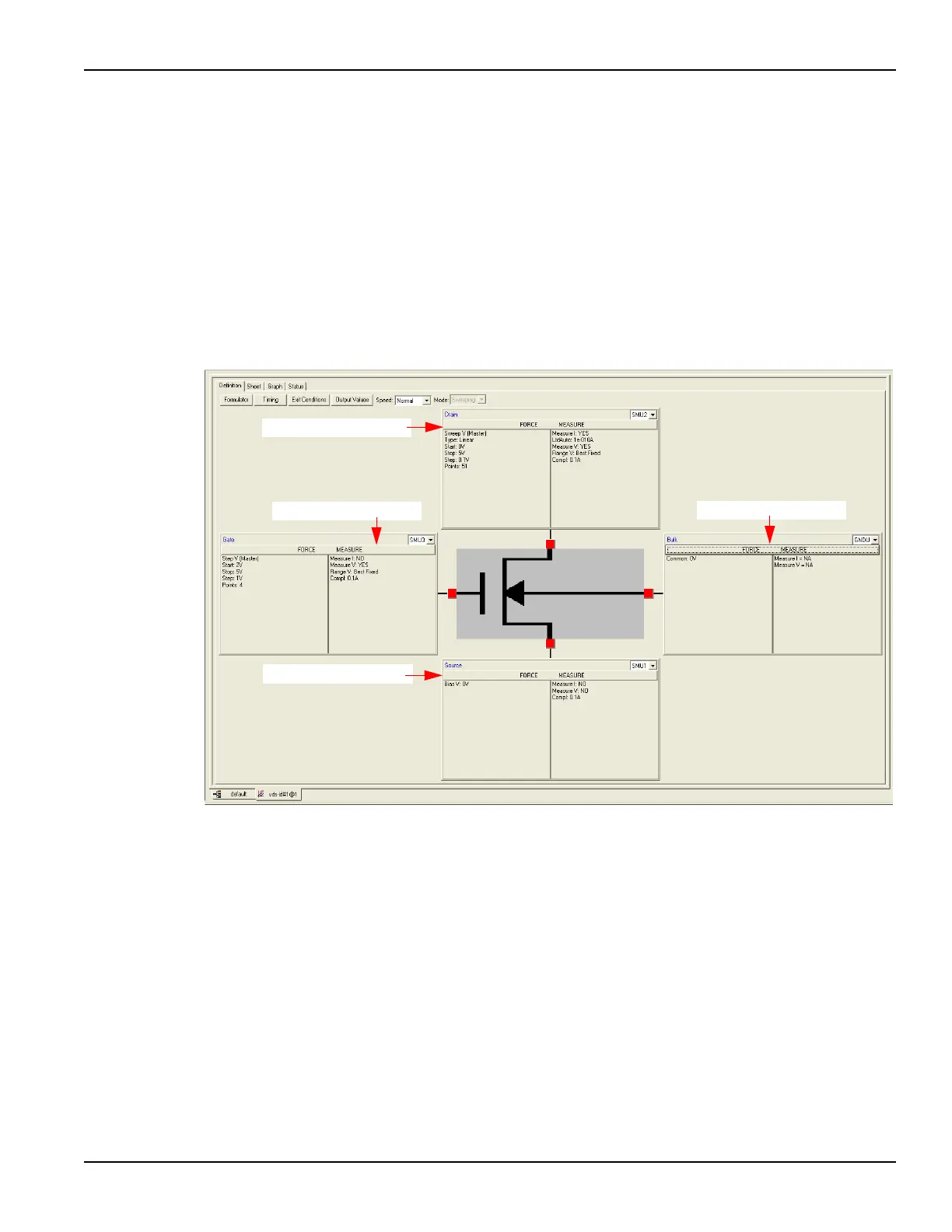

Figure 1-35
Vds-id Definition tab - How to display a setup window for SMUs and GNDU
2.Figure 1-36 shows the settings dialog box for SMU3. The settings dialog box for the other
SMUs and GNDU are similar.
Click to set up SMU2
Click to set up SMU3
Click to set up SMU1
Click to set up GNDU
