Keithley 4200-SCS User Manual

3-20 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 3: Common Device Characterization Tests Model 4200-SCS User’s Manual
Status
With Status enabled (as shown in Figure 3-12), the following errors will be
reported in the sheet and graph tabs when a measurement fault occurs:
• ABB fails to lock
• AC voltage high overflow
• AC voltage low overflow
• AC current overflow
For more information refer to the Reference manual, CVU measurement status,
page 15-161.
Compensation
After making connections for the test, connection compensation must be
performed and enabled before running test. See the Reference manual,
Connection compensation, page 15-18 to perform connection compensation.
The CVU compensation window (shown in Figure 3-15) is used to enable (check)
Open, Short, and Load compensation. The window is opened by clicking the
Compensation button in the force-measure window.
Cable length setting is to be made from the compensation window:
• 0 M = Disables compensation
• 1.5M = 1.5 meters
• 3 M = 3.0 meters
• Custom = Cable length coefficients measured by the user using the Tools >
Connection Compensation dialog box.

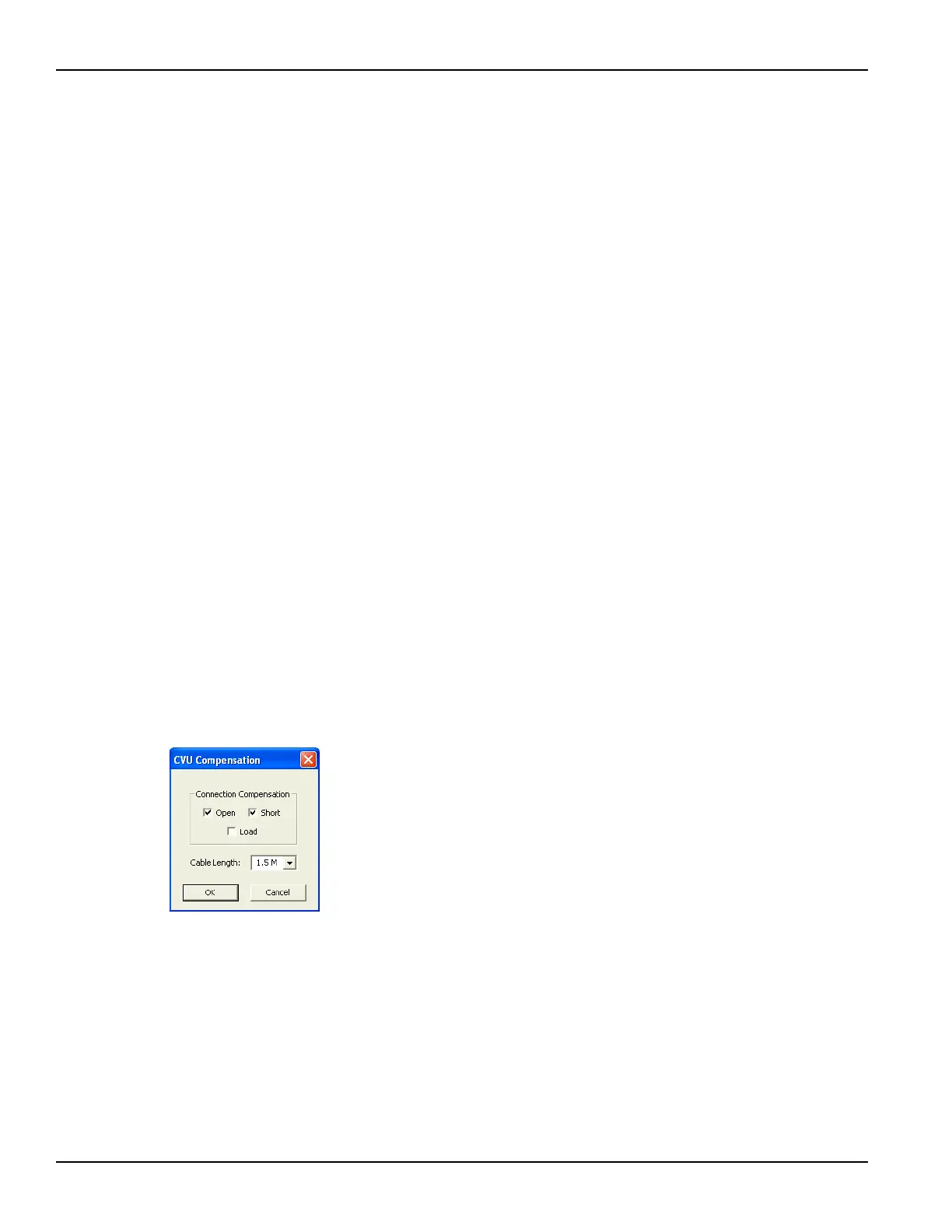

Figure 3-15
CVU compensation window
