Keithley 4200-SCS User Manual

1-42 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 1: Getting Started Model 4200-SCS User’s Manual

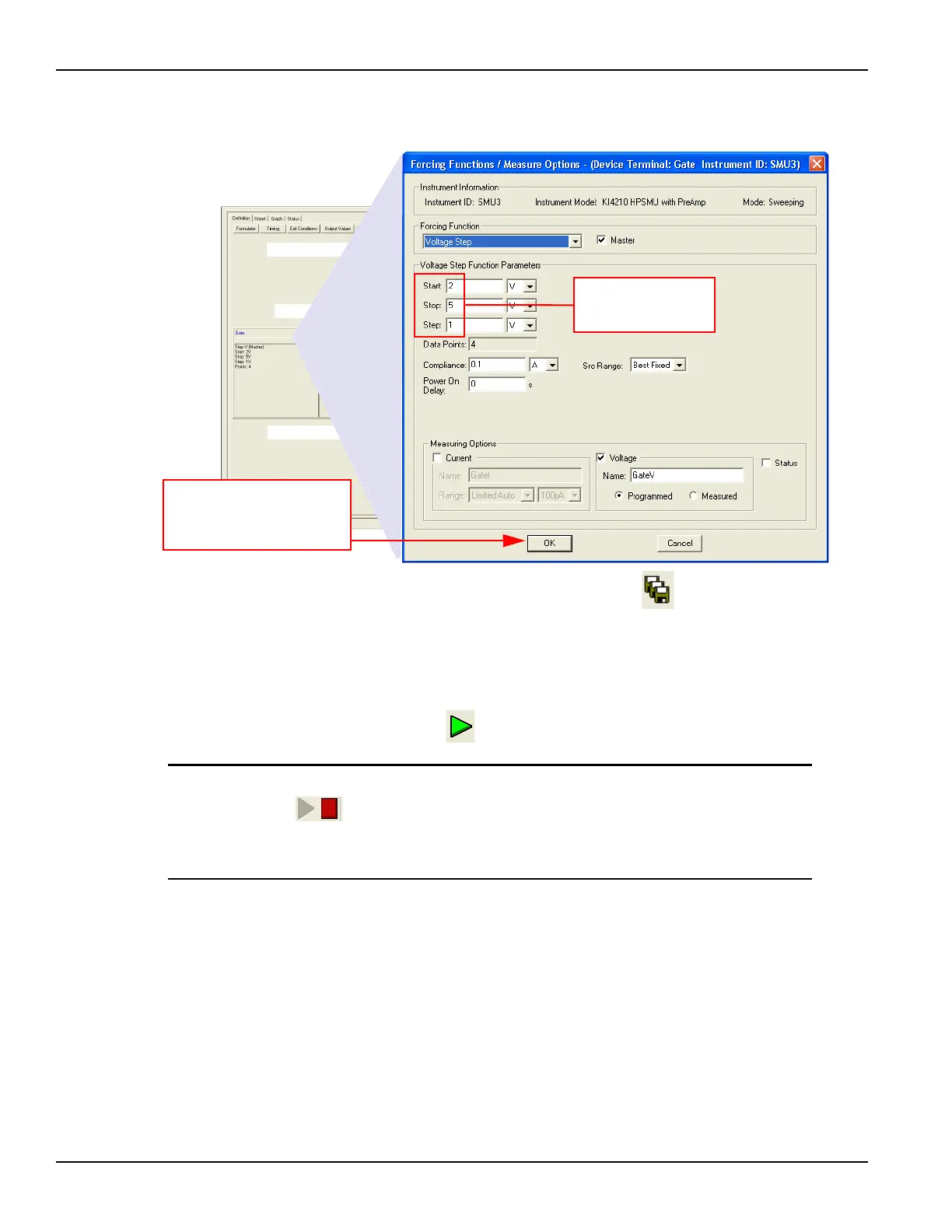

Figure 1-36
Setup for SMU3
3. After making any changes to the test definition, click Save All on the toolbar to save
the settings.
Run vds-id test
In the project navigator (see Figure 1-34), make sure the vds-id test is highlighted and the
checkbox is checked.
On the toolbar, click the green Run Test button to run the test one time.
NOTE While the test is running, the Run Test button turns gray and the Abort Test button
turns red . Also, the ACTIVE indicator light (located on the lower right-hand
corner of the front panel of the 4200-SCS will be on while the test is running. When
the test is finished, the Run test button turns green.
View and save the sheet data
View data sheet for the vds-id test is displayed by clicking the Sheet tab for the test. Use the tabs
at the bottom of the Sheet to display the data type. A sample data sheet for the vds-id test is
shown in Figure 1-37.
The data sheet for the vds-id test is displayed by clicking the Sheet tab.
Click to set up
Click to set up
Click to set up
Click to set up
These parameters set
the gate voltage steps:
2V, 3V, 4V, and 5V.
If you make any changes to
the SMU3 setup, click OK to
enter the changes and close
the window.
