Model 4200-SCS User’s Manual Section 2: Model 4200-SCS Software Environment

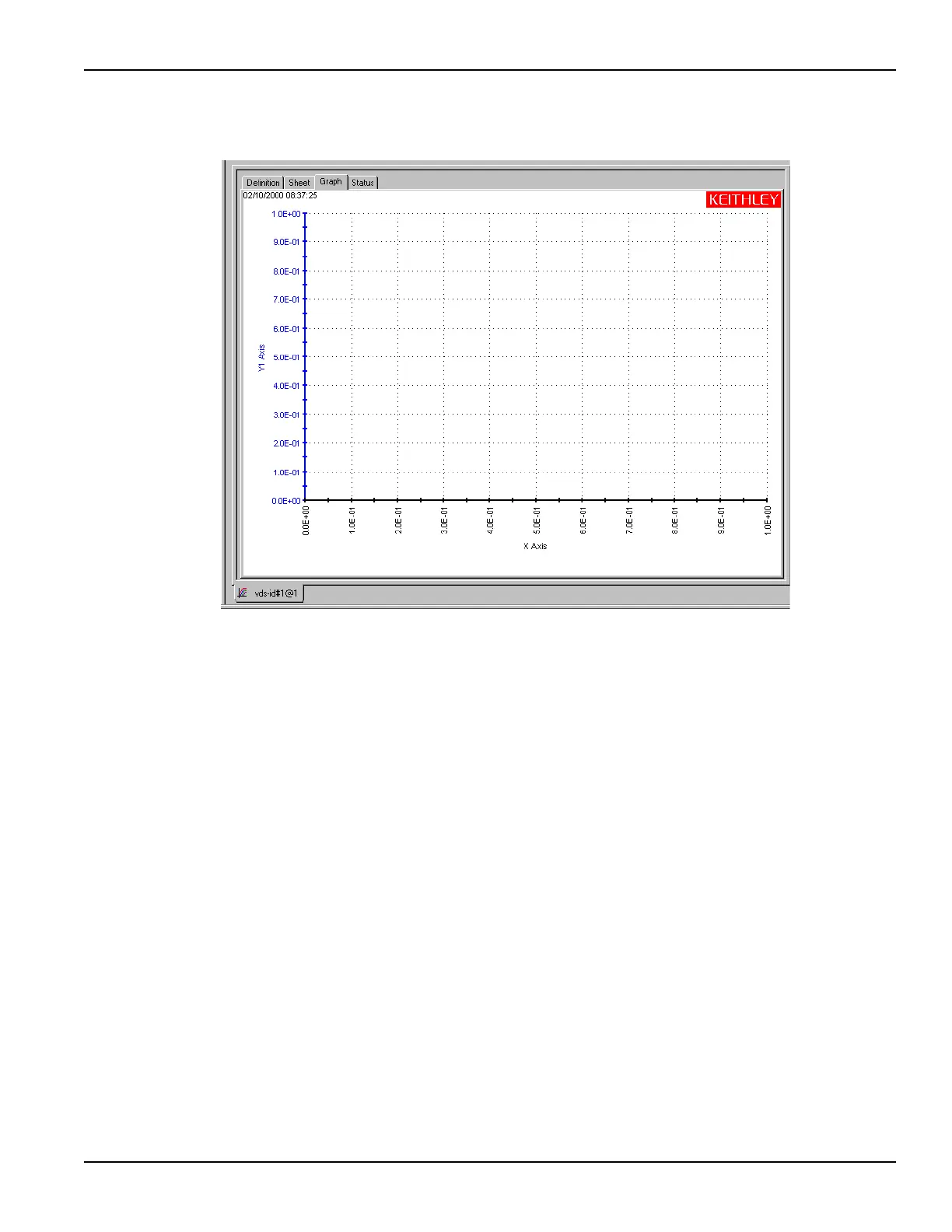

Figure 2-29
Example of an unconfigured Graph tab
The vds-id ITM is one of the ITMs that comes installed on your 4200-SCS with sample data,
including a configured graph (Reference manual, Figure 6-6). The vds-id ITM has been used for
illustration purposes through much of Section 6, including construction of the u_build project
(Reference Manual, Building a completely new Project Plan, page 6-48). The definition tab for the
vds-id ITM is shown in multiple places, including at the beginning of this section.
Accessing the Graph tab windows
Several Graph tab windows control the properties of a graph.
You can access these windows in two ways:
• Use the graph settings menu: When defining a graph, you typically access all Graph tab
windows using the graph settings menu.
• Right-click on certain graph components: When certain graph components are already
displayed, you can open context-appropriate edit windows by right-clicking the components.
Applicable graph components include titles, legends, comments, numerical coordinates,
and values displayed through the data variables menu item.
Opening the graph settings menu
Open the graph settings menu by either of the following methods:
• Menu access method I: Right-click in any blank portion of the Graph tab (any place except
on a Graph tab component). The Graph Settings menu appears as a pop-up menu. See
Figure 2-30.
