Keithley 4200-SCS User Manual

4-10 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 4: How to Control Other Instruments with the Model 4200-SCS Model 4200-SCS User Manual

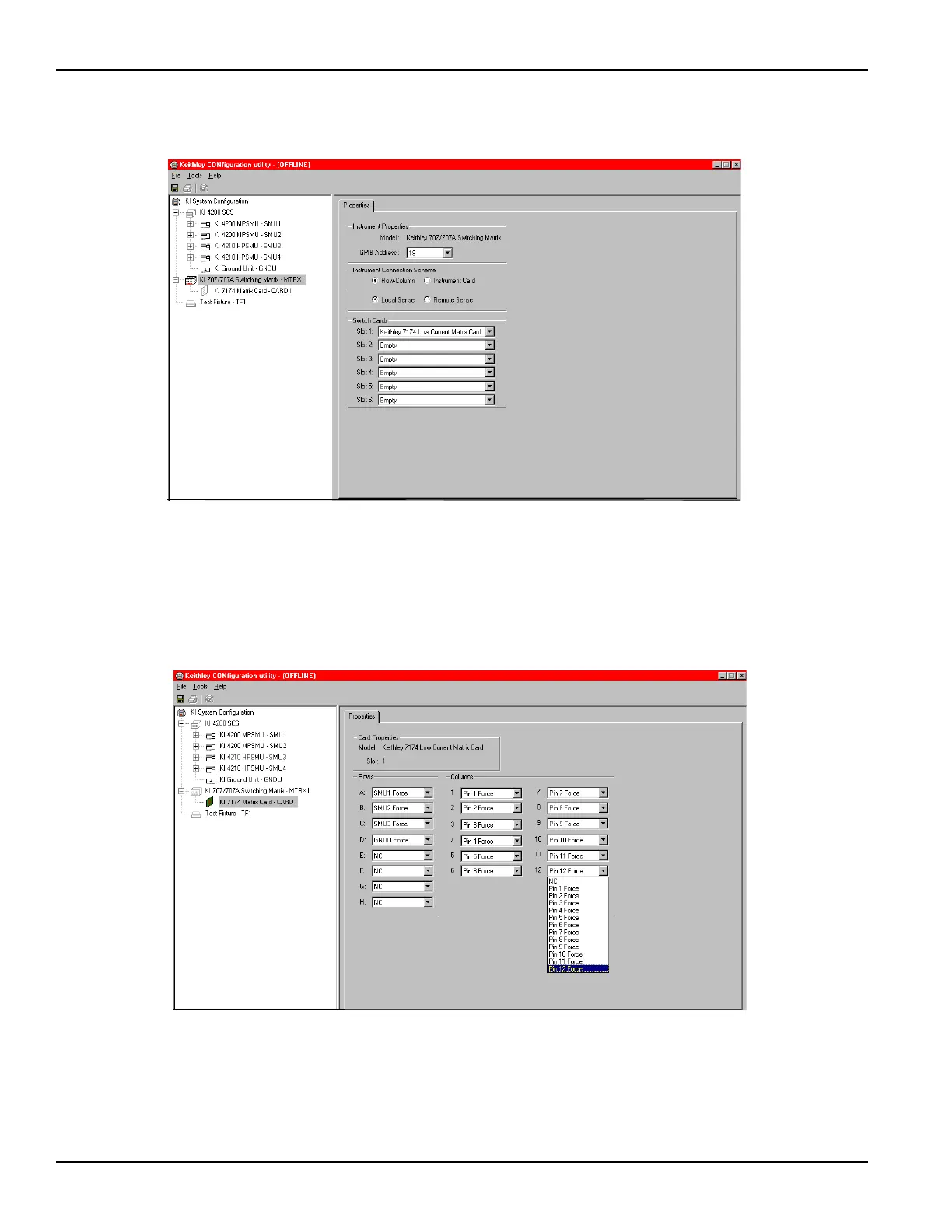

Figure 4-10
Add a switch card to the system configuration
5. Select the KI 7174 Matrix Card - CARD1 item in the configuration navigator. Connect the
SMUs, GNDU, and test fixture pins as indicated in Figure 4-7 using the pull-down menus on
the Properties tab. See Figure 4-11.
Figure 4-11
Define the system connections
6.Select File > Save and save the system configuration and exit KCON. See Figure 4-12.
