Keithley 4200-SCS User Manual

4-20 Return to Section Topics 4200-900-01 Rev. K / February 2017
Section 4: How to Control Other Instruments with the Model 4200-SCS Model 4200-SCS User Manual

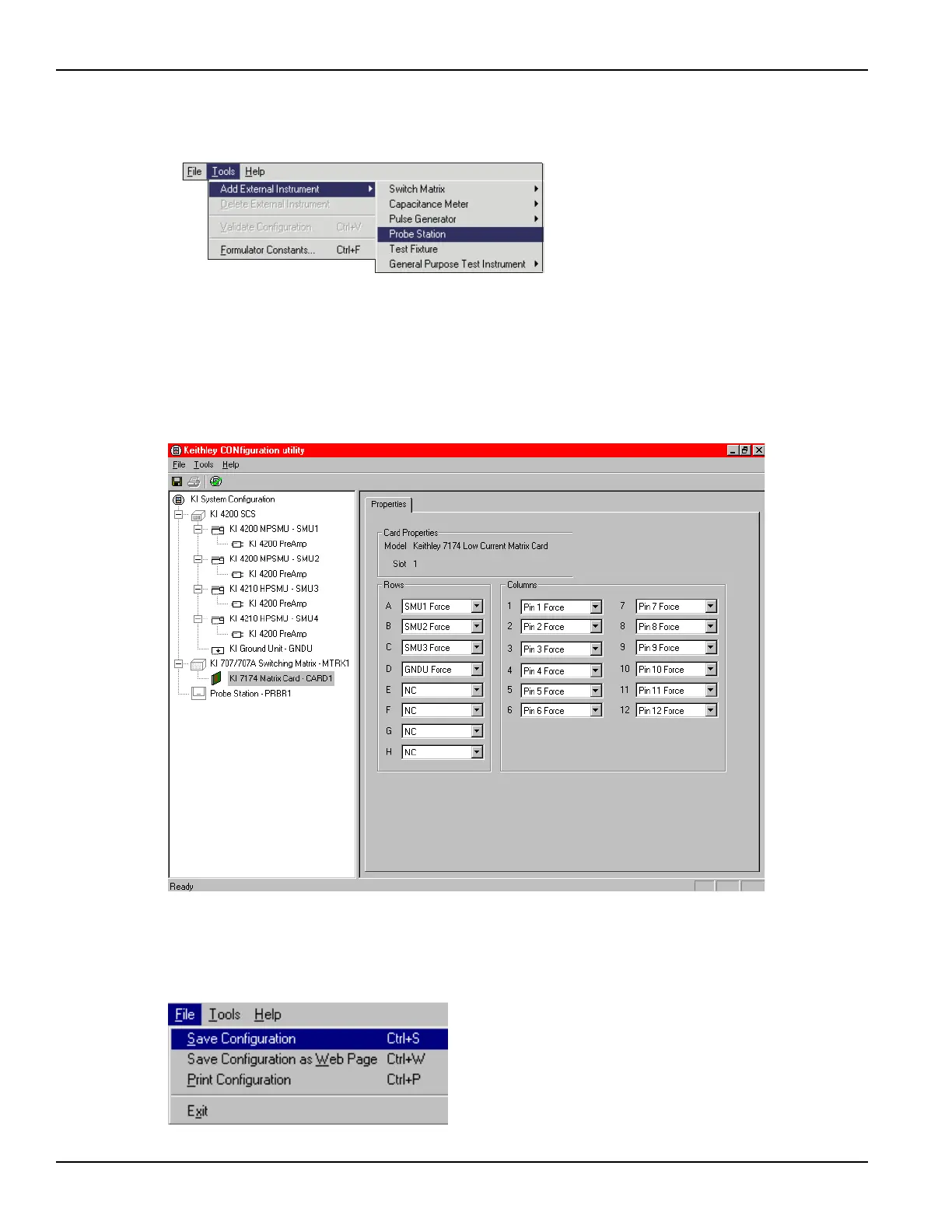

Figure 4-25
Adding a probe station
5. Connect the instrument terminals and probe station pins to the switch matrix by selecting
the KI 7174 Matrix Card - CARD1 in the configuration navigator and configuring it as
illustrated in Figure 4-26. Detailed information about switch matrix configuration can be
found in the Reference Manual, Appendix A, Creating Project Prompts.
Figure 4-26
Connecting the switch matrix
6.Save the configuration using the KCON File menu as illustrated in Figure 4-27.
Figure 4-27
Saving the system configuration
