Sweep Current
sweep
Increments a series of current values or voltage values at a rate that is determined by the timing and
speed settings in the ITM definition tab. Generates parametric curve data that is recorded in the Sheet
tab Data worksheet for the ITM and can be plotted in the ITM Graph tab.
Voltage
sweep
List
sweep
Current
List
Sweep
Steps through a list of user-specified current values or voltage values, at a rate that is determined by the
timing and speed settings in the ITM definition tab. Generates parametric data that is recorded in the ITM
Sheet tab Data worksheet and can be plotted in the ITM Graph tab, if appropriate.
Voltage
List
Sweep
Table 2-2 (continued)

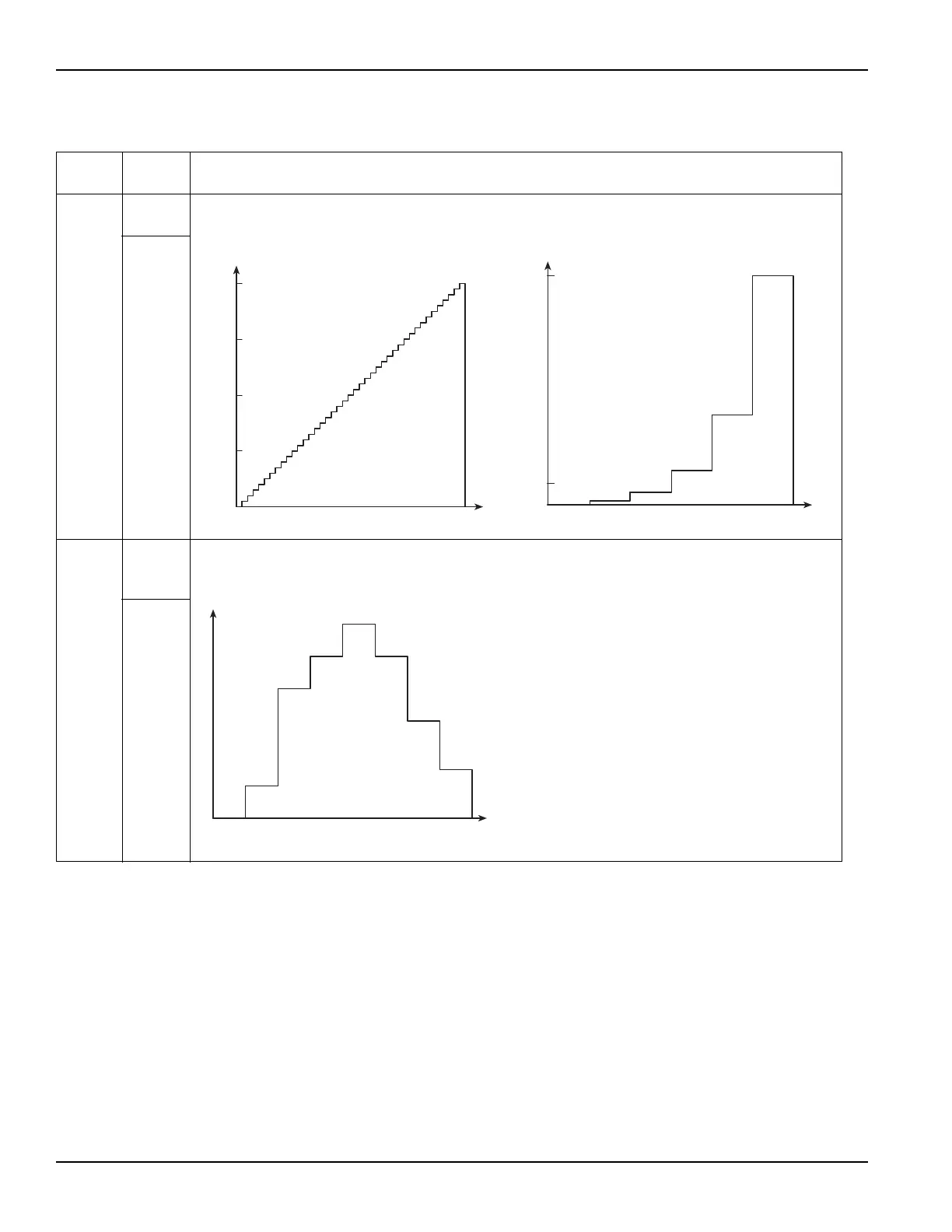

SMU Forcing function summary
General
type Name Description and graphical illustrations
100
10
1000
Current (µA)
Time
0.1V Steps, 41 Data Points
4
3
1
2
0
Gate V
oltage (V)
Time
Linear sweep Log sweep
Time
Current or
Voltage
Arbitrary
function
