Repair information 4-17
7462
HVPS card assembly removal
1. Remove the side cover, right. See “Side cover, right removal (models X651, X652, X654, and X656)” on
page 4-119 or “Side cover, right removal (model X658)” on page 4-118.

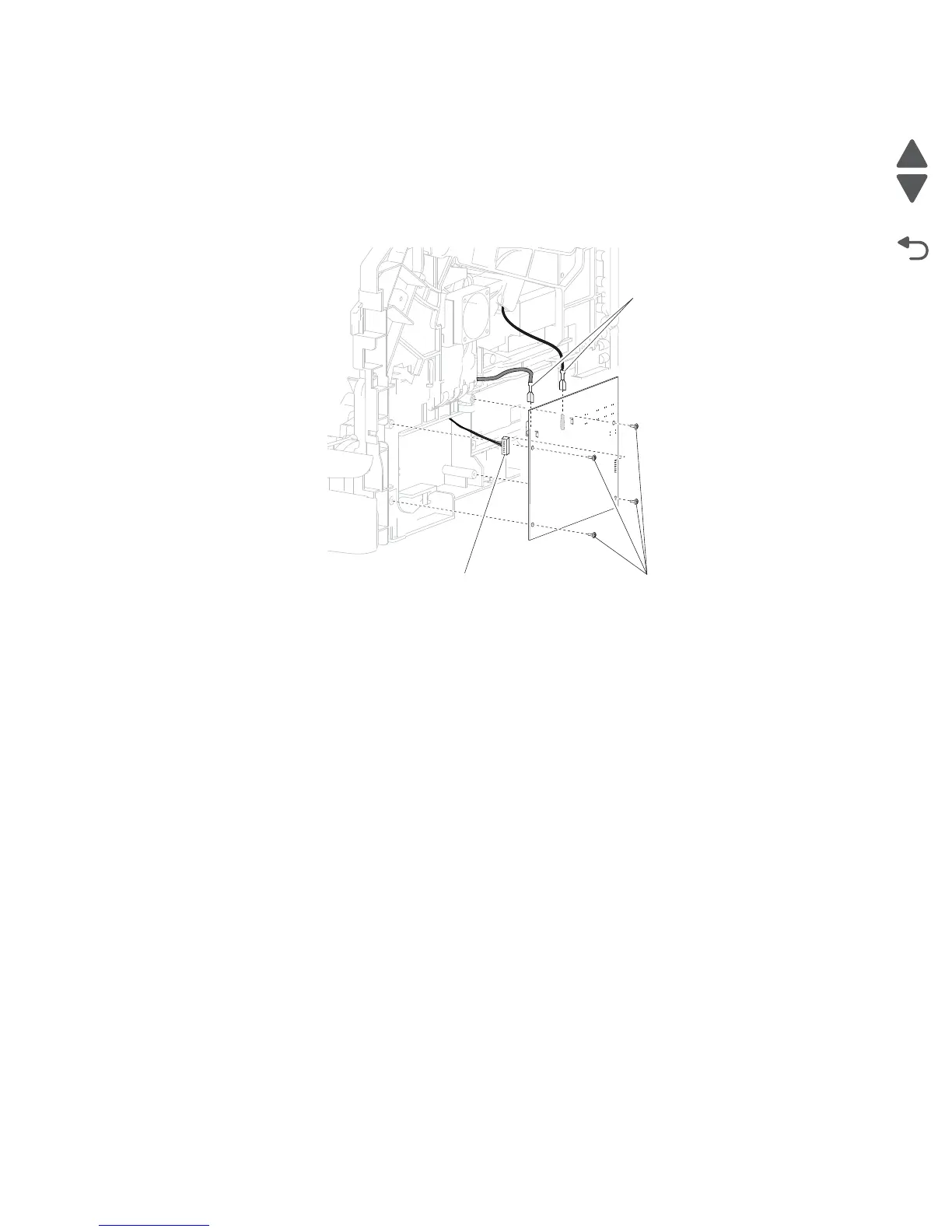

2. Remove the four screws (A) securing the HVPS card assembly to the machine.
3. Remove the HVPS card assembly.
4. Remove connection (B) and the two high voltage connections (C) from the HVPS card assembly.
Replacement Warning: When replacing the HVPS card assembly, ensure that the two high voltage
connections (C) are properly replaced.
