4-18 Service Manual
7462
Inner deflector removal
Note: The MPF lift plate assembly can be detached and allowed to hang by the harness. The connection to
the MPF lower deflector assembly does not need to be disconnected.
1. Remove the MPF lift plate assembly. See “MPF lift plate assembly removal” on page 4-25.

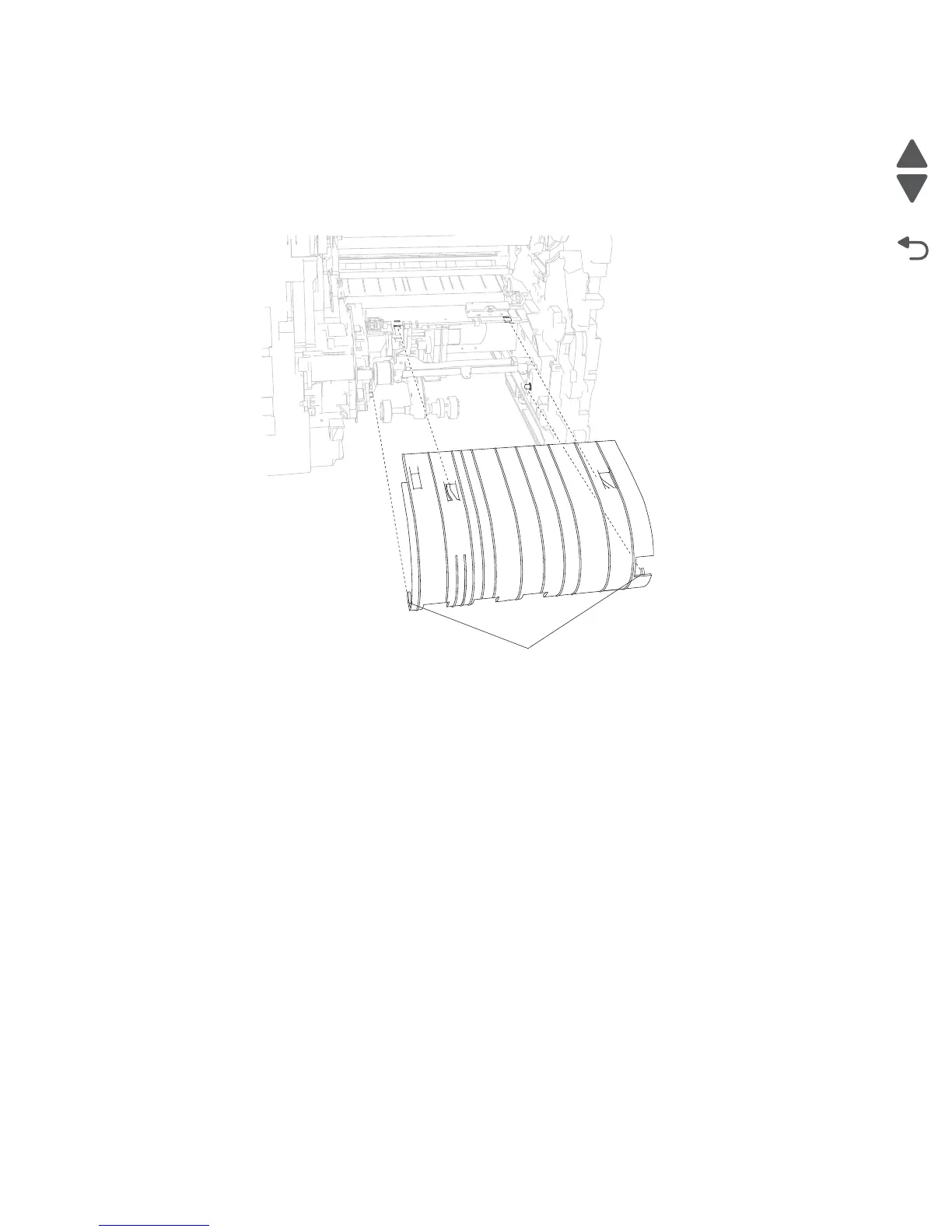

2. Release the two hooks (A) securing the lower portion of the inner deflector to the machine.
3. Remove the inner deflector.
Replacement Warning: When replacing the inner deflector, ensure that it is properly installed, or jamming will
occur.
