Repair information 4-19
7462

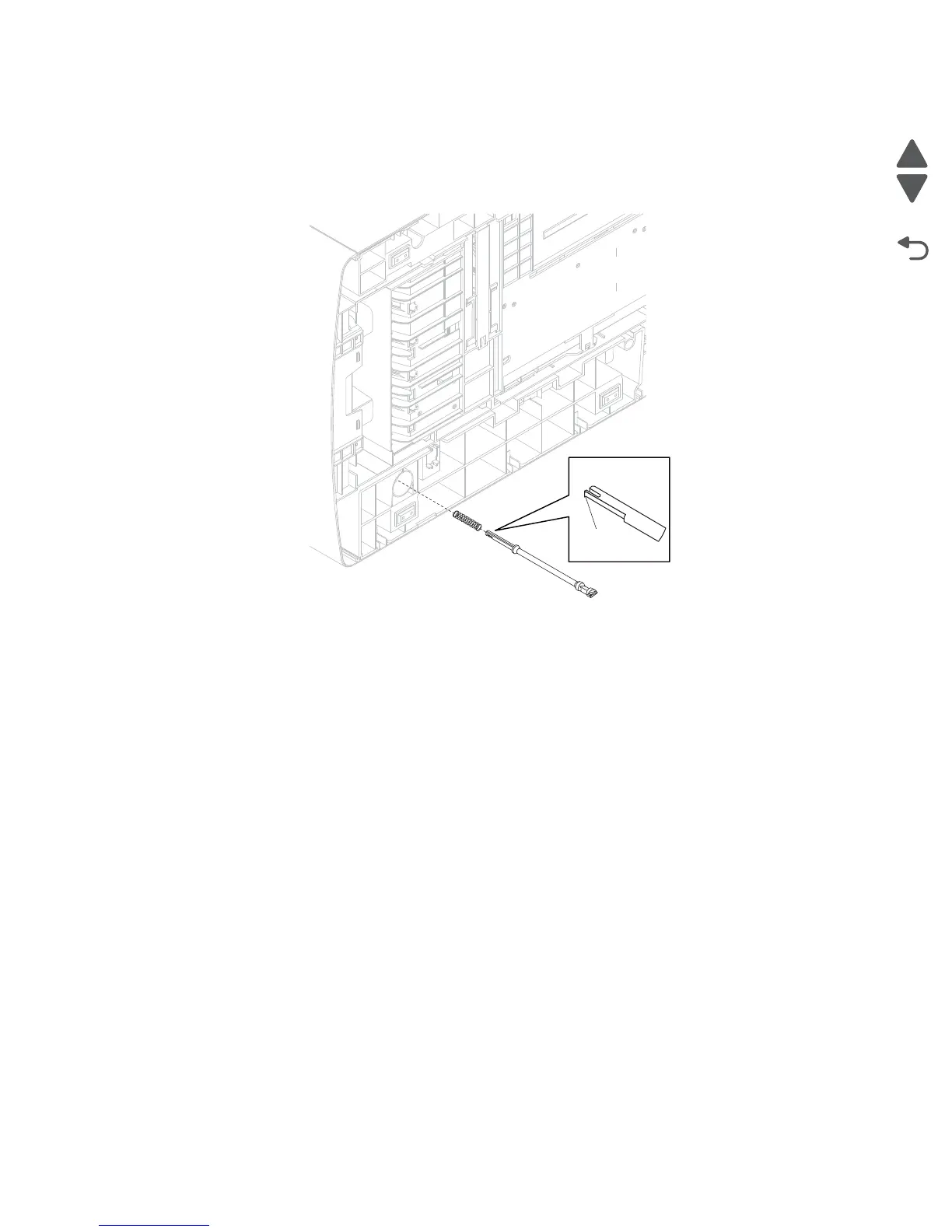

Option drive shaft removal
1. Gently place the printer on its left or right side.
2. Using pliers, gently pull the option drive shaft from the machine.
3. Remove the spring.
Replacement Warning: When replacing the option drive shaft, ensure that the plastic hook (A) is not
damaged, or the option drive shaft will not remain secured.
