ADF pick roll position cam assembly removal
1. Remove the ADF cover, front. See “ADF cover, front removal” on page 4-59.
2. Remove the ADF feed / pick roll assembly. See “ADF feed / pick roll assembly removal” on page 4-56.

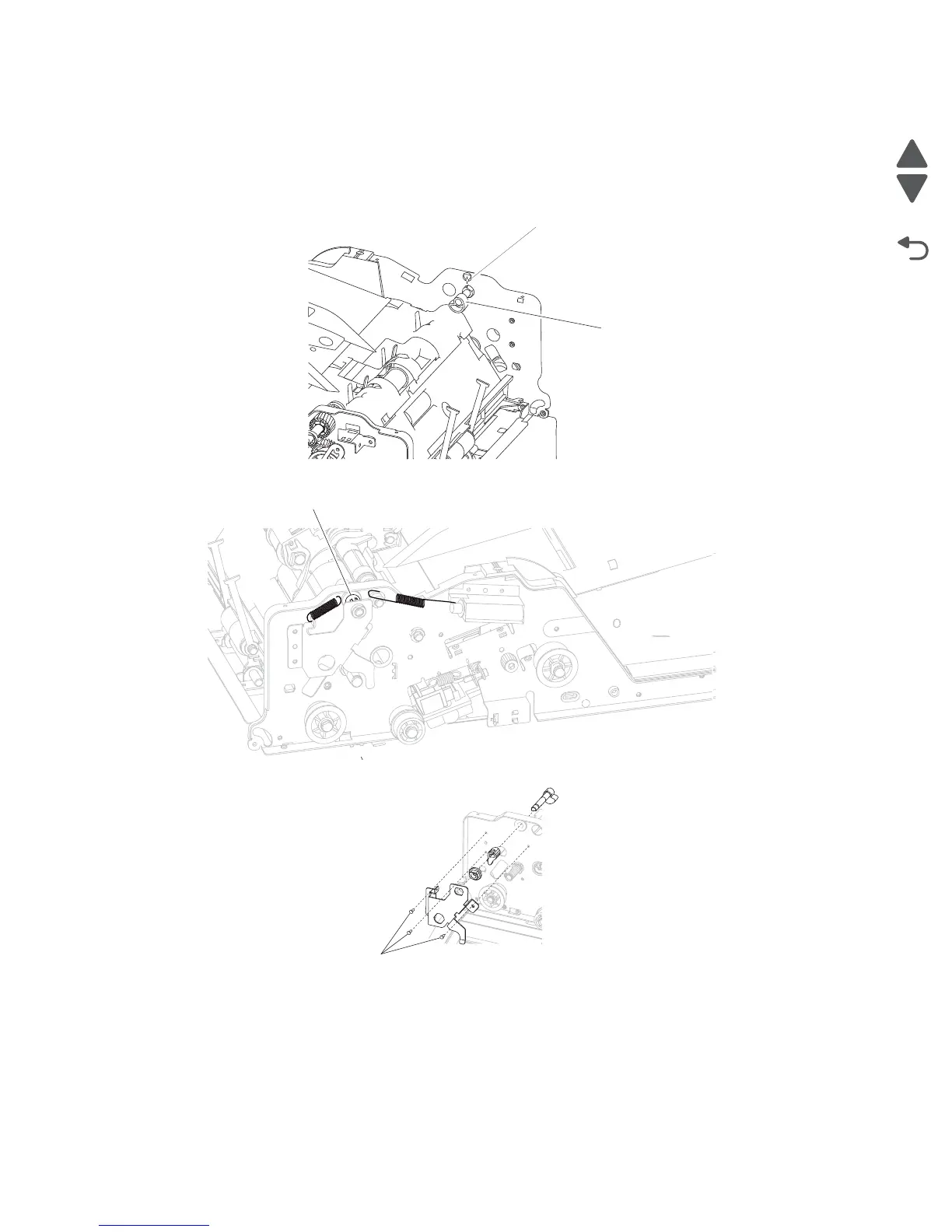

3. Disengage the clip (A) on the shaft arm (B), securing it to the shaft.
4. Remove the two springs attached to the shaft arm (B).
5. Remove the three screws (C) securing the ADF pick roll position cam assembly bracket.
6. Remove the ADF pick roll position cam assembly bracket.
7. Remove it from the shaft.
8. Slide the shaft and ADF pick roll position cam assembly out of the ADF frame.
A
B
B
B
B
C
