Repair information 4-73
7462
ADF feed drive motor assembly removal
1. Remove the ADF transport motor bracket assembly with cable. See “ADF transport drive motor bracket
assembly w/cable removal” on page 4-71.
2. Unfasten and remove all wires from the ADF feed drive motor assembly.
3. Disconnect the ADF feed motor harness from the feed motor.

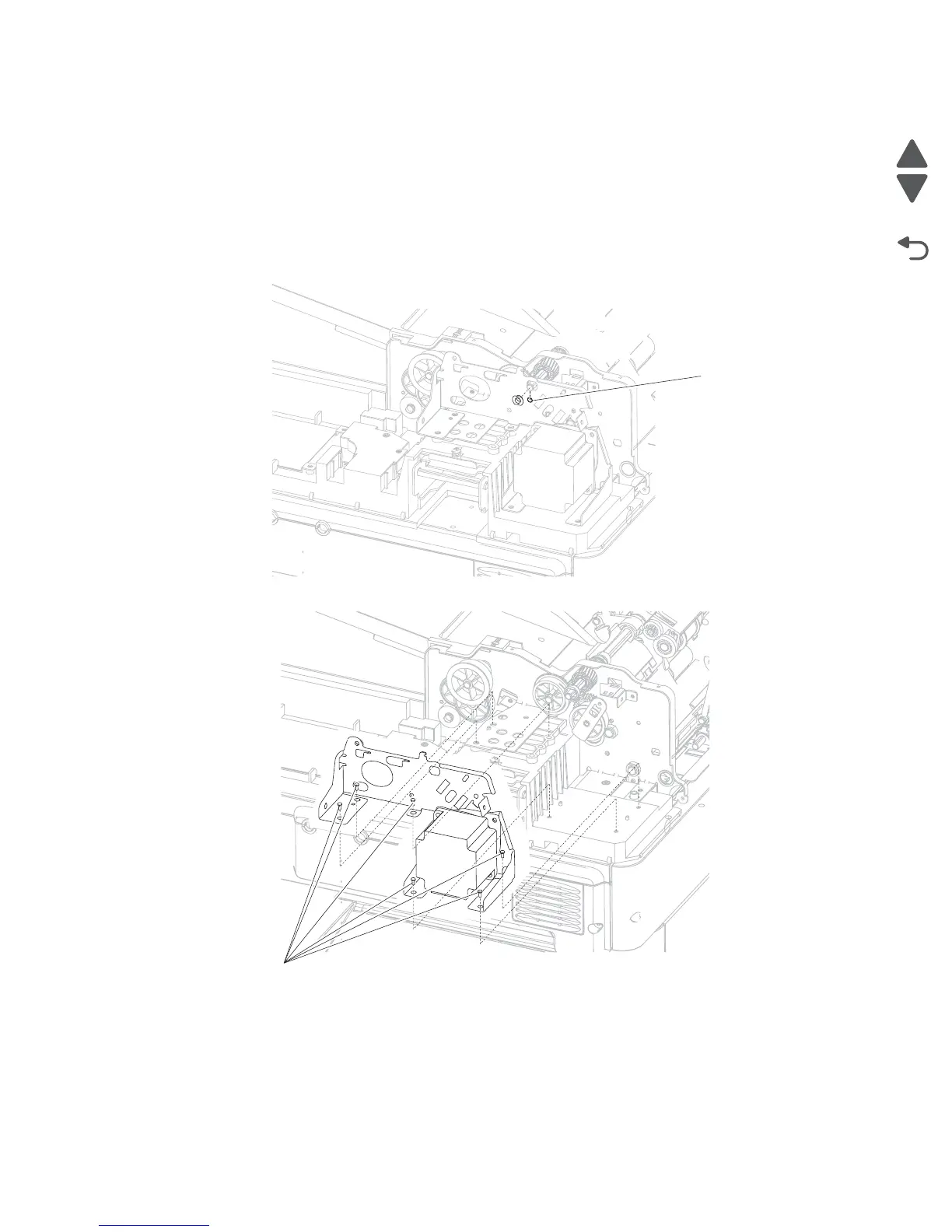

4. Remove the E-clip (A) securing one end of the ADF feed / pick roll feed shaft to the ADF feed drive motor
assembly.
5. Remove the bushing from the pick roll feed shaft.
6. Remove the six screws (B) securing the ADF feed motor assembly to the ADF unit assembly.
7. Remove the ADF feed motor assembly to include two belts and cable.
To Next Page
