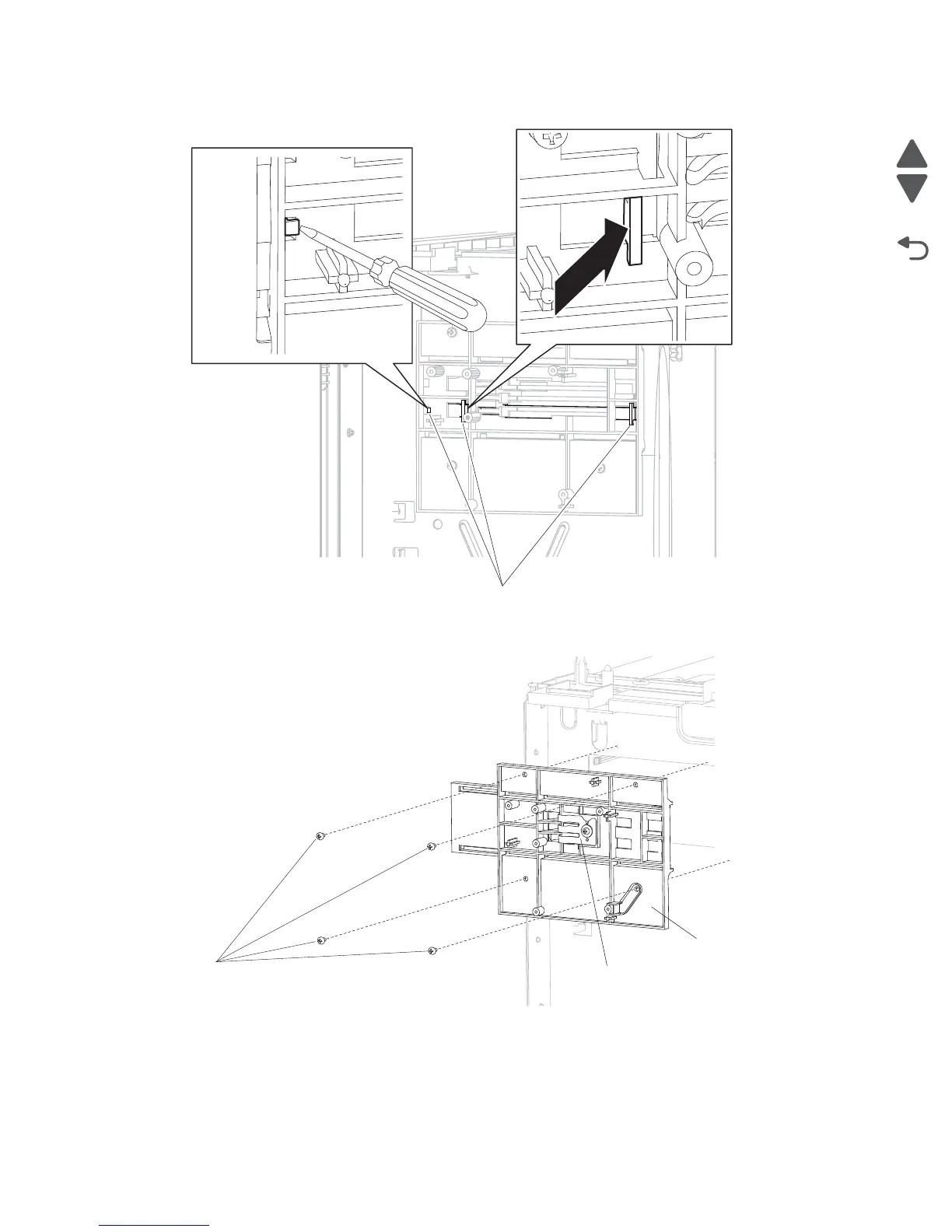

4. Snap loose the actuator switch (C) and remove.

5. Remove the four screws (D) securing the media size actuator (E) and the card mount option (F) to the

frame.

6. Remove the screw securing the media size actuator to the card mount option.
