Repair information 4-167
7462
Go Back
Previous
Next

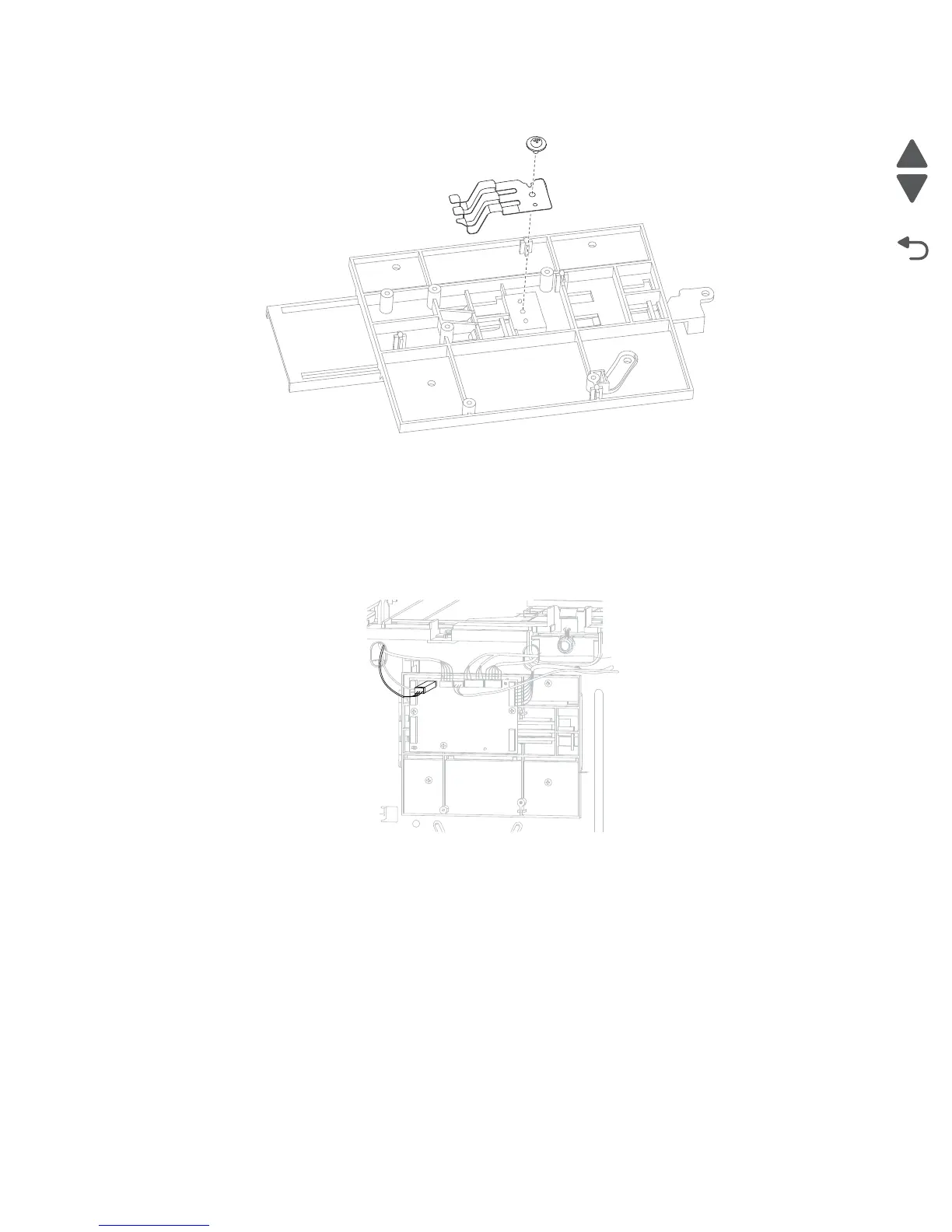

7. Remove the media size actuator from the card mount option.
8. Remove the card mount option.
Sensor (HCIT tray raised HP) with cable assembly removal
Note: Carefully remove the base machine from the HCIT tray assembly before proceeding.
1. Remove the HCIT cover, left. See “High capacity input tray (HCIT) cover, left removal” on page 4-159.
2. Disconnect the sensor (HCIT tray raised HP) from the HCIT controller card assembly.
Note: Remove the cable from the restraints, and observe the routing for reinstallation.
3. Remove the screw (A) securing the sensor to the upper rear frame.
4. Release the hooks (A) securing the sensor to the rear frame.
