Repair information 4-181
7462
Media tray catch spring removal
Note: Carefully remove the base machine from the input option tray assembly before proceeding.
1. Remove the 250-sheet pick arm bracket assembly. See “250-sheet pick arm bracket assembly removal”
on page 4-174.
2. Release the hooks securing the sensor (pass through) to the drawer.
3. Remove the sensor (pass through) from the drawer.

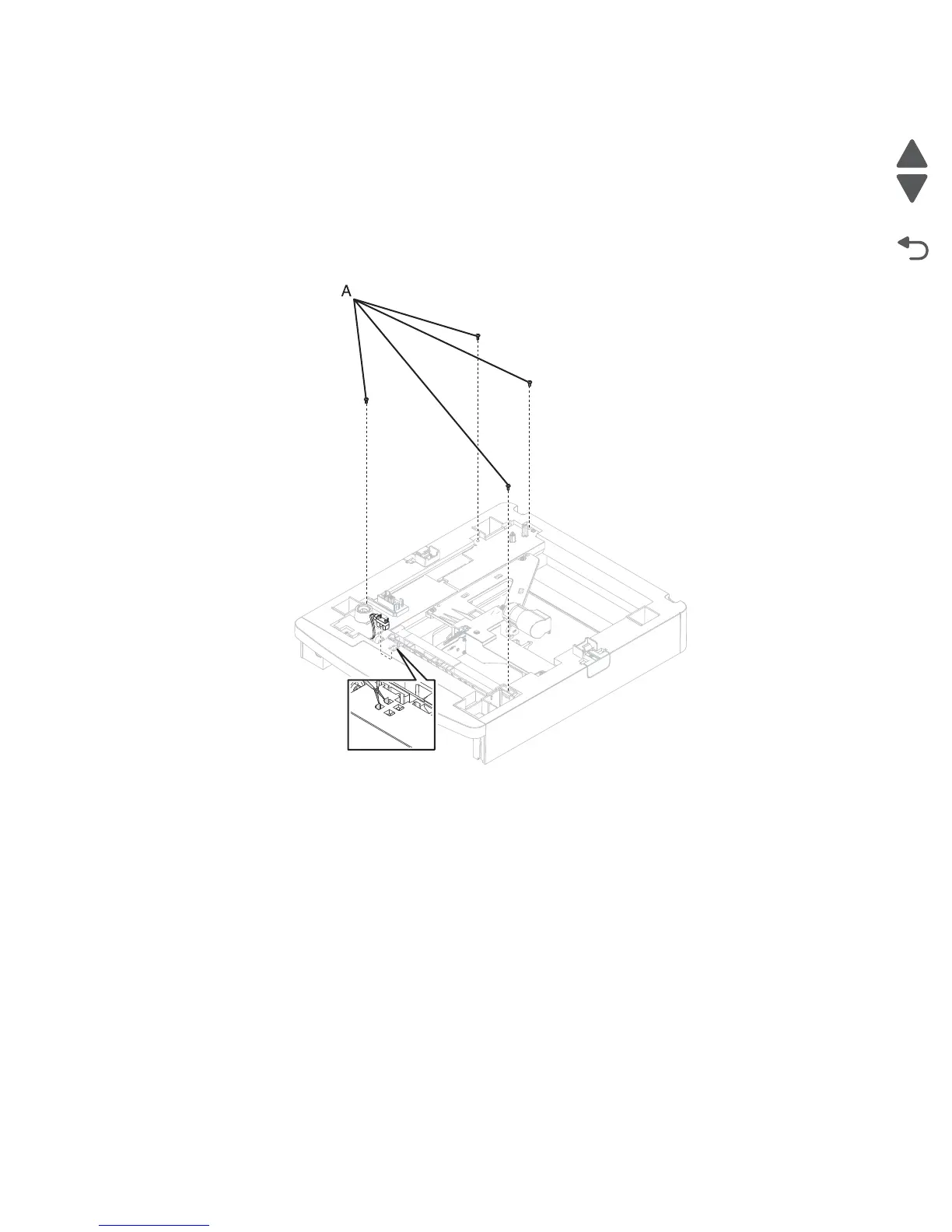

4. Remove the four screws (A) securing the 250-sheet frame assembly to the drawer.
To Next Page
