4-188 Service Manual

7462

Go Back

550-sheet frame assembly removal

Note: The 550-sheet frame assembly is not a FRU.

1. Remove the 550-sheet pick arm bracket assembly. See “550-sheet pick arm bracket assembly removal”

on page 4-185.

2. Release the hooks securing the sensor (pass through) to the drawer.

3. Remove the sensor (pass through) from the drawer.

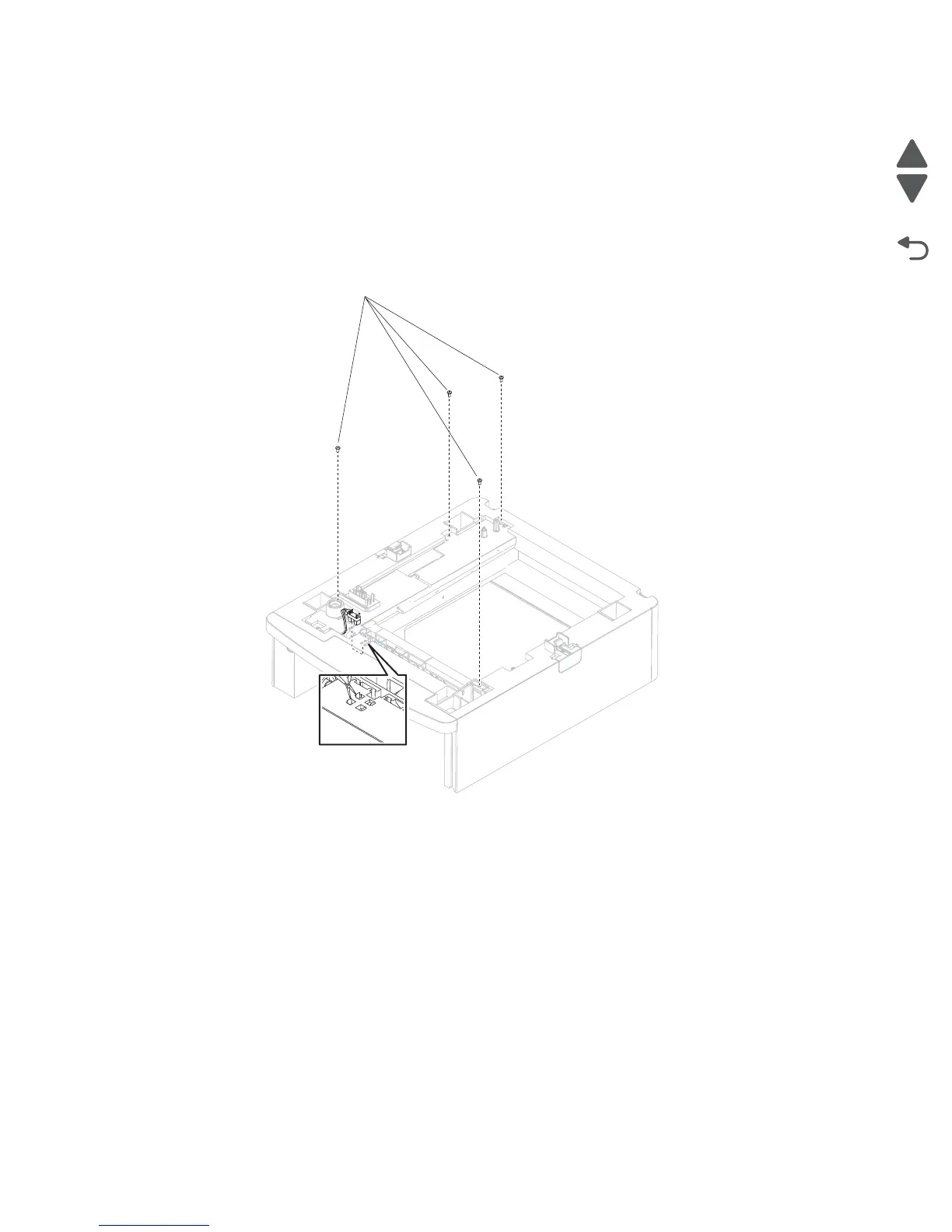

4. Remove the four screws (A) securing the 550-sheet frame assembly to the drawer.
