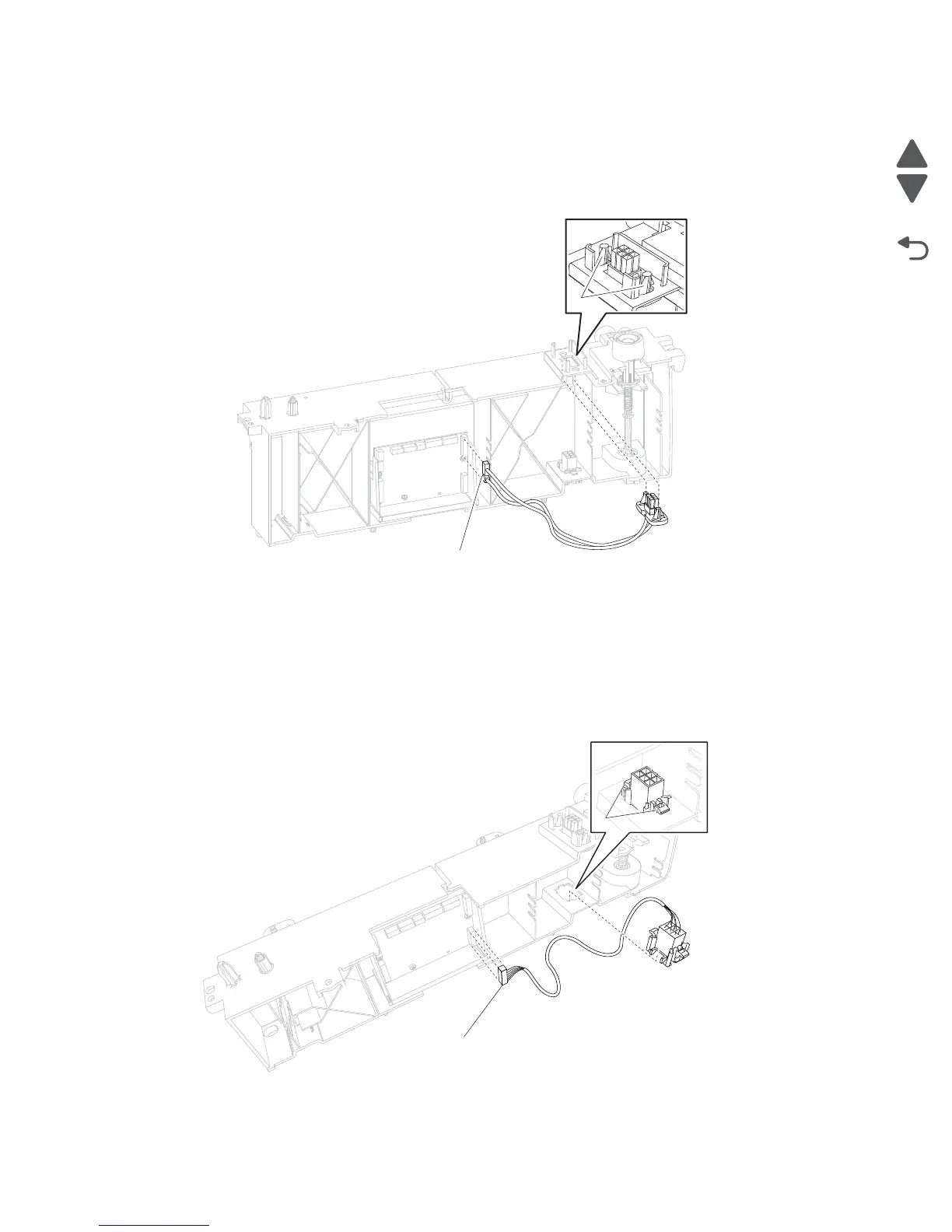

Upper interface cable assembly removal
1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-188.
2. Disconnect the upper interface cable connector (A) from the 550-sheet controller card.
3. Release the two hooks (B) securing the options auto connect to the 550-sheet frame.
4. Remove the upper interface cable assembly.
Lower interface cable assembly removal
1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-188.
2. Disconnect the lower interface cable connector (A) from the 550-sheet controller card.
3. Pinch the options auto connect (B) to separate the lower interface cable assembly from the 550-sheet
frame.
4. Remove the lower interface cable assembly.
B
A
B
A
