Lexmark T65 Series Service Manual

Repair information 4-191
7462
Go Back
Previous
Next

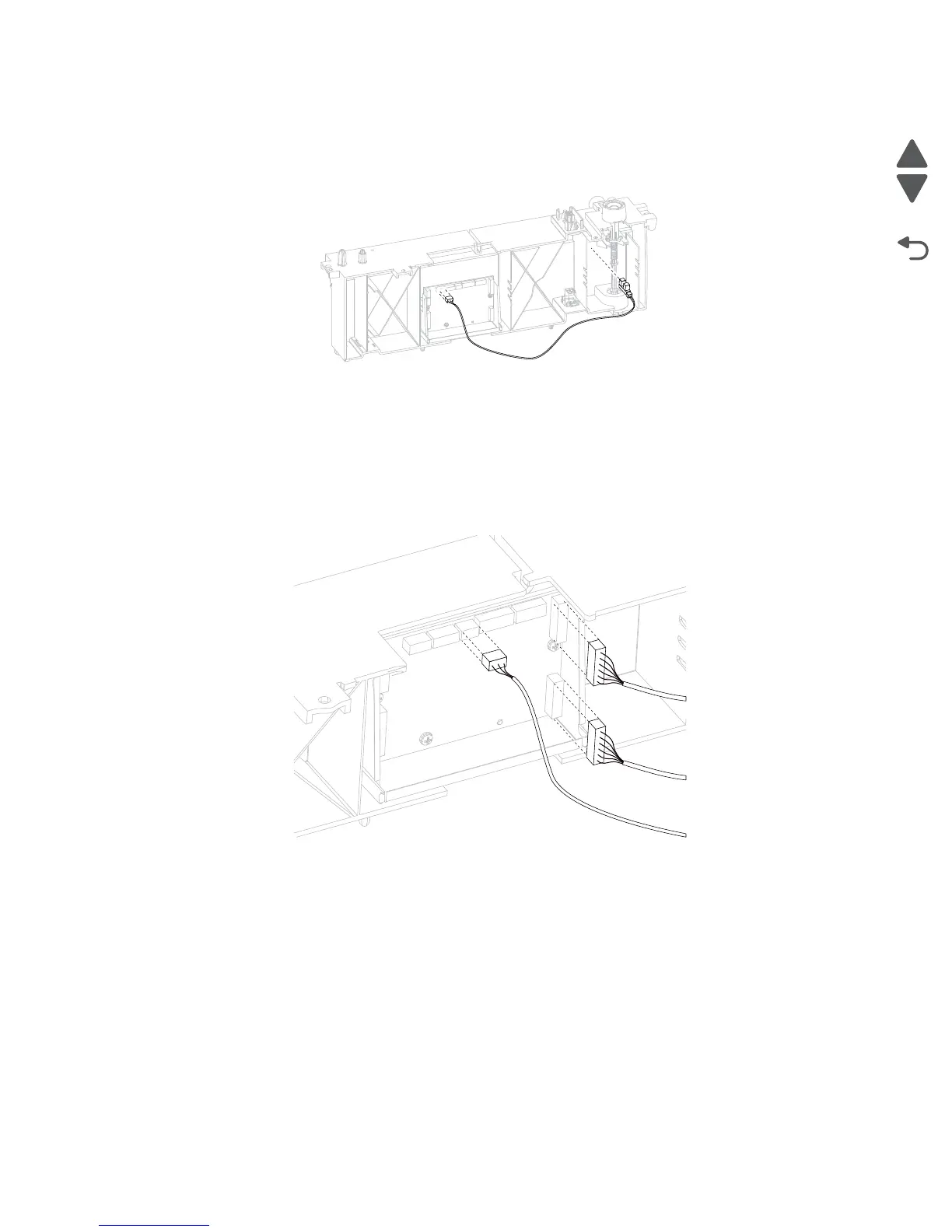

Sensor (pass through) with cable removal
1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-188.
2. Disconnect the sensor (pass through) cable connector from the 550-sheet controller card.
3. Remove the sensor (pass through) with cable.
550-sheet controller card assembly removal
1. Remove the 550-sheet frame assembly. See “550-sheet frame assembly removal” on page 4-188.
2. Disconnect the three connectors from the 550-sheet controller card assembly.
