Lexmark T65 Series Service Manual

Repair information 4-221
7462
Go Back
Previous
Next
4-bin mailbox assembly sensor (deflector gate HP) removal
1. Remove the 4-bin mailbox assembly left cover. See “4-bin mailbox assembly left cover removal” on
page 4-218.
2. Remove the 4-bin mailbox assembly rear door assembly. See “4-bin mailbox assembly rear door
assembly removal” on page 4-222.
3. Remove the 4-bin mailbox assembly left rear inner cover.

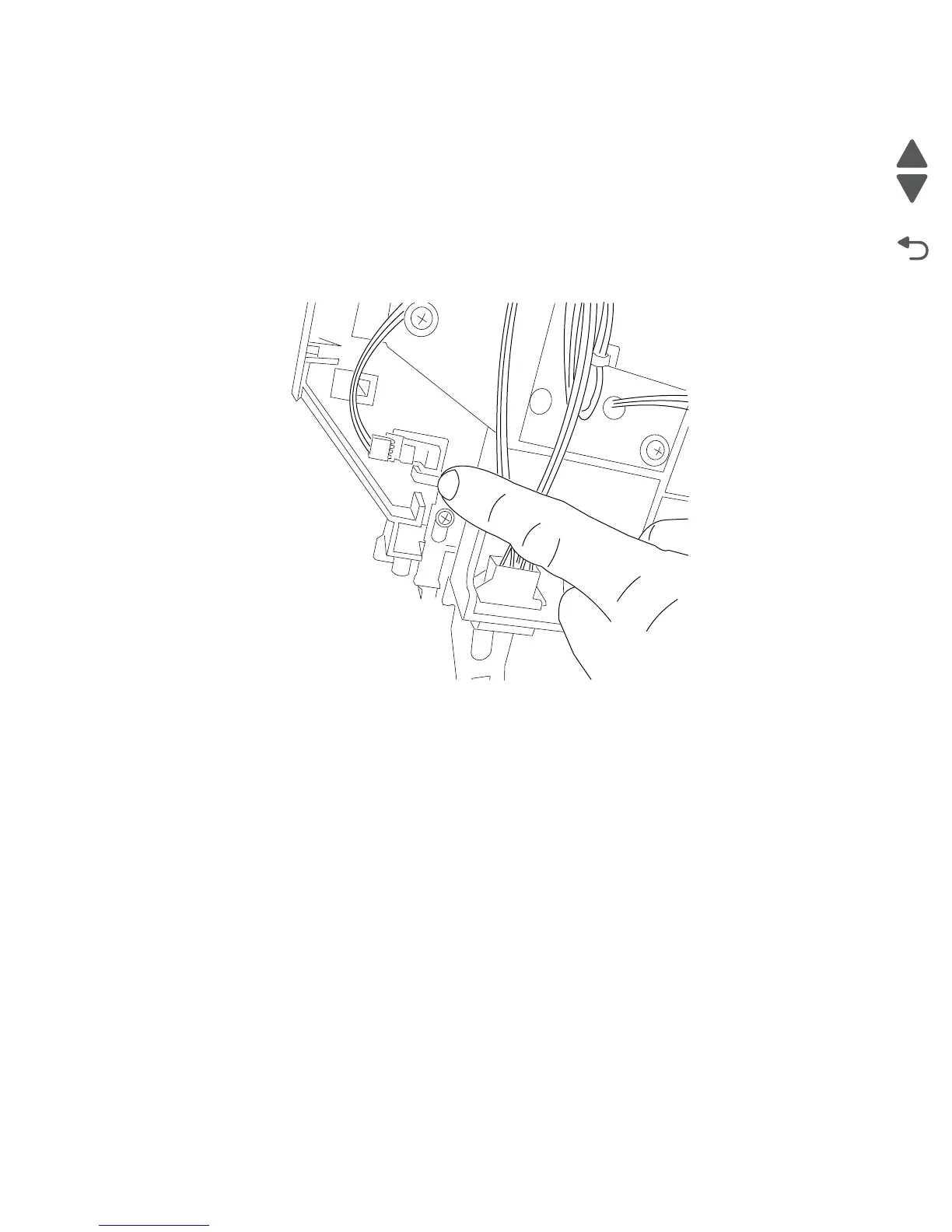

4. Release the tabs securing the sensor (deflector gate HP) and remove the sensor from the 4-bin mailbox
assembly.
5. Disconnect the harness from the sensor (deflector gate HP).
