4-220 Service Manual

7462

Go Back

4-bin mailbox assembly sensor (media bin full) removal

1. Remove the 4-bin mailbox assembly left cover. See “4-bin mailbox assembly left cover removal” on

page 4-218.

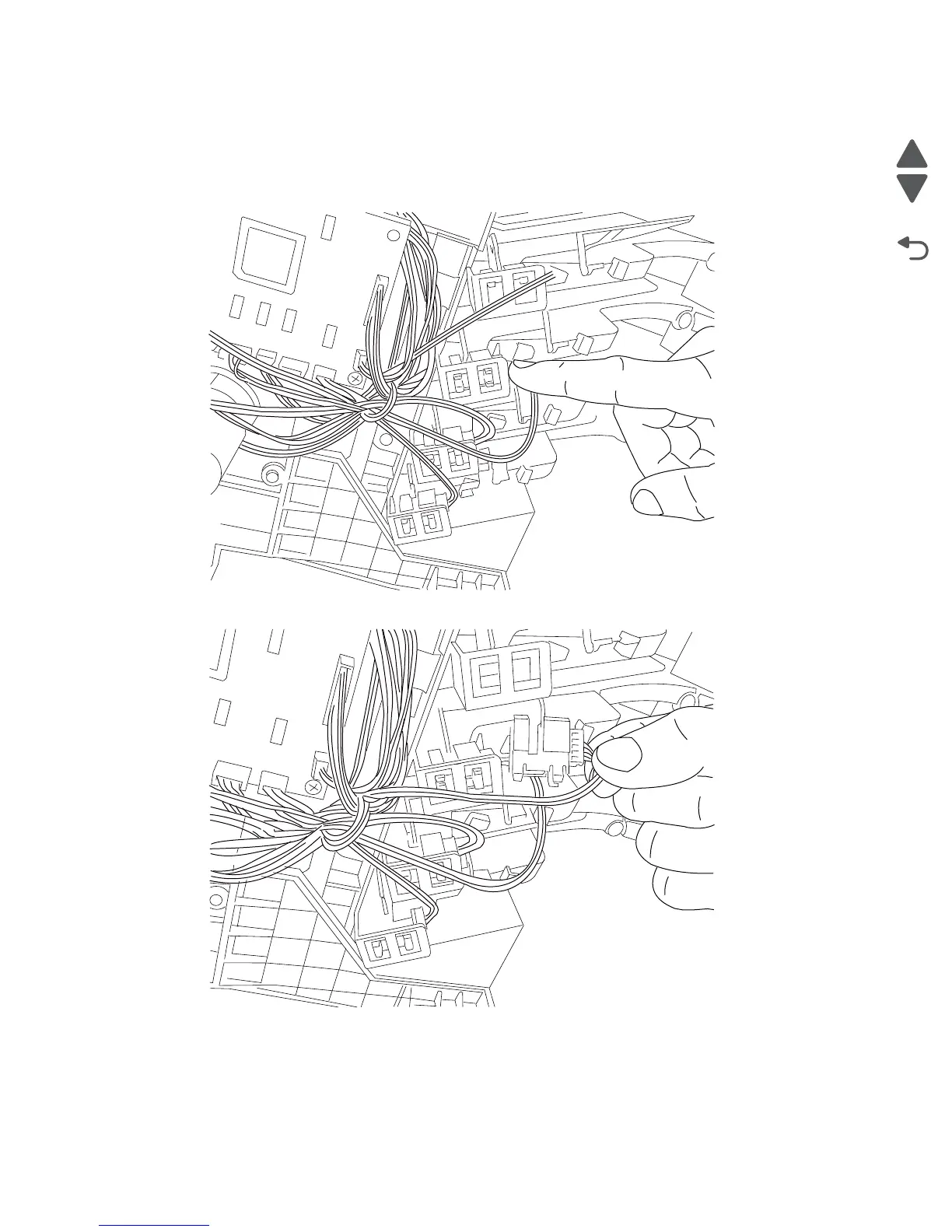

2. Disconnect the harness to the sensor (media bin full).

3. Pinch the tabs securing the sensor (media bin full) to the media tray and remove.
