4-bin mailbox assembly top cover removal

1. Remove the 4-bin mailbox assembly left cover. See “4-bin mailbox assembly left cover removal” on

page 4-218.

2. Remove the right cover. See “4-bin mailbox assembly right cover removal” on page 4-223.

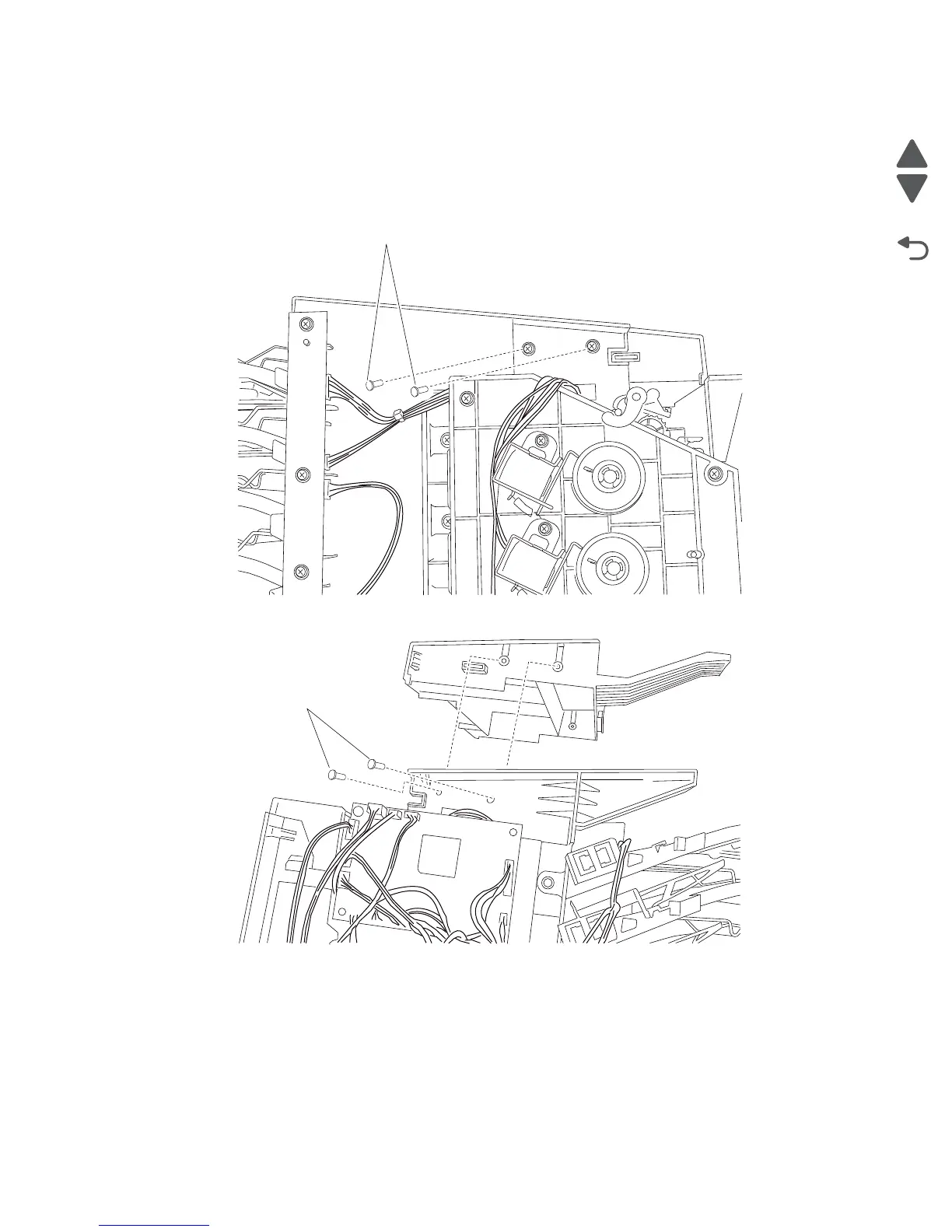

3. Remove the four screws (A) on each side of the top cover securing it to the 4-bin mailbox assembly.

4. Slide the top cover towards the rear and remove.
