4-232 Service Manual
7462
4-bin mailbox assembly sensor (mailbox empty) removal
Note: The sensor (pass through) is the lower rear sensor. The rear upper sensor is the sensor (mailbox
empty).
1. Open the rear door.

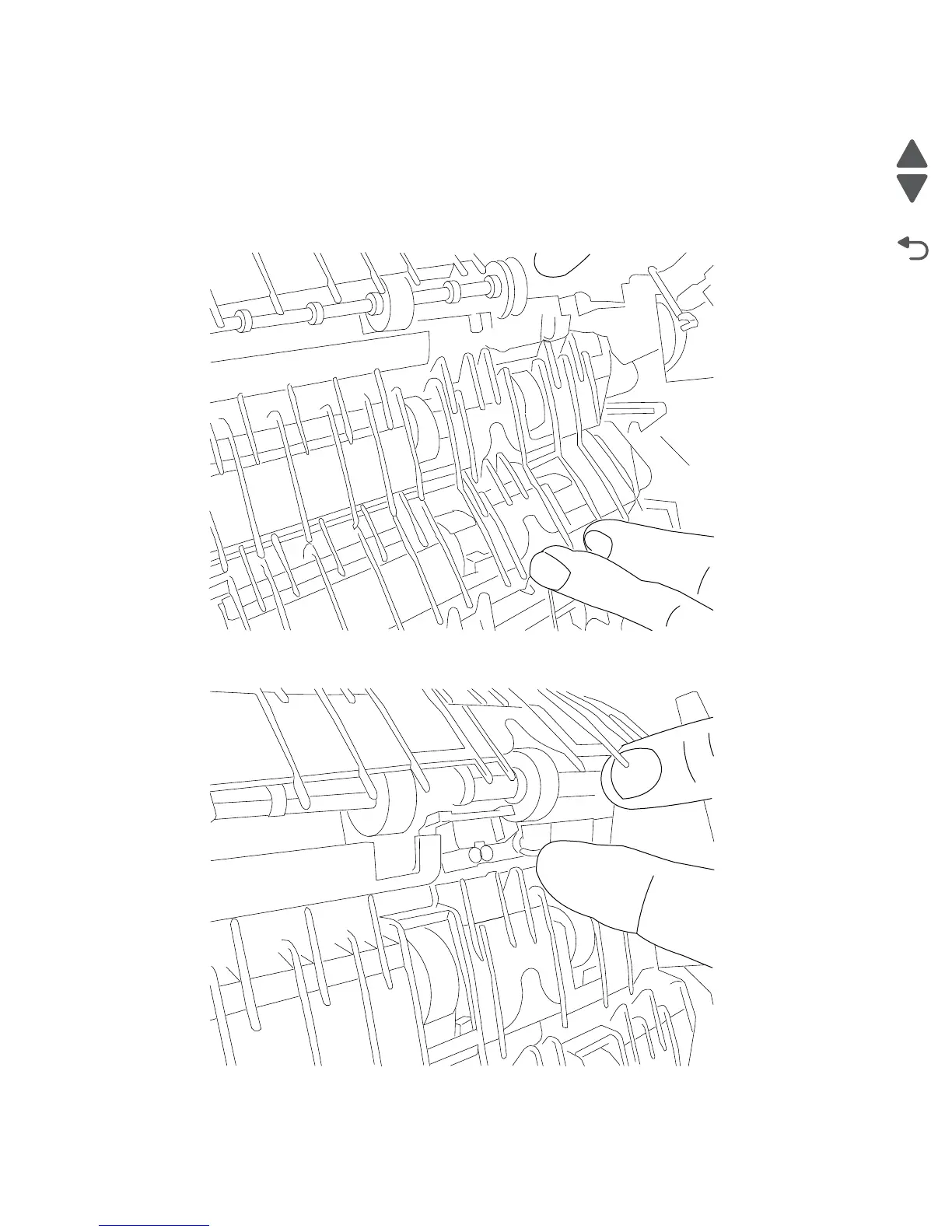

2. Lift the deflector gate above the sensor (mailbox empty) and using a flat-blade screwdriver, release the
tabs securing the sensor (mailbox empty) to the 4-bin mailbox assembly.
3. Remove the 4-bin mailbox left cover. See “4-bin mailbox assembly left cover removal” on page 4-218.
4. Disconnect the sensor (mailbox empty) harness from the controller board.
