4-bin mailbox assembly standard output bin LED removal

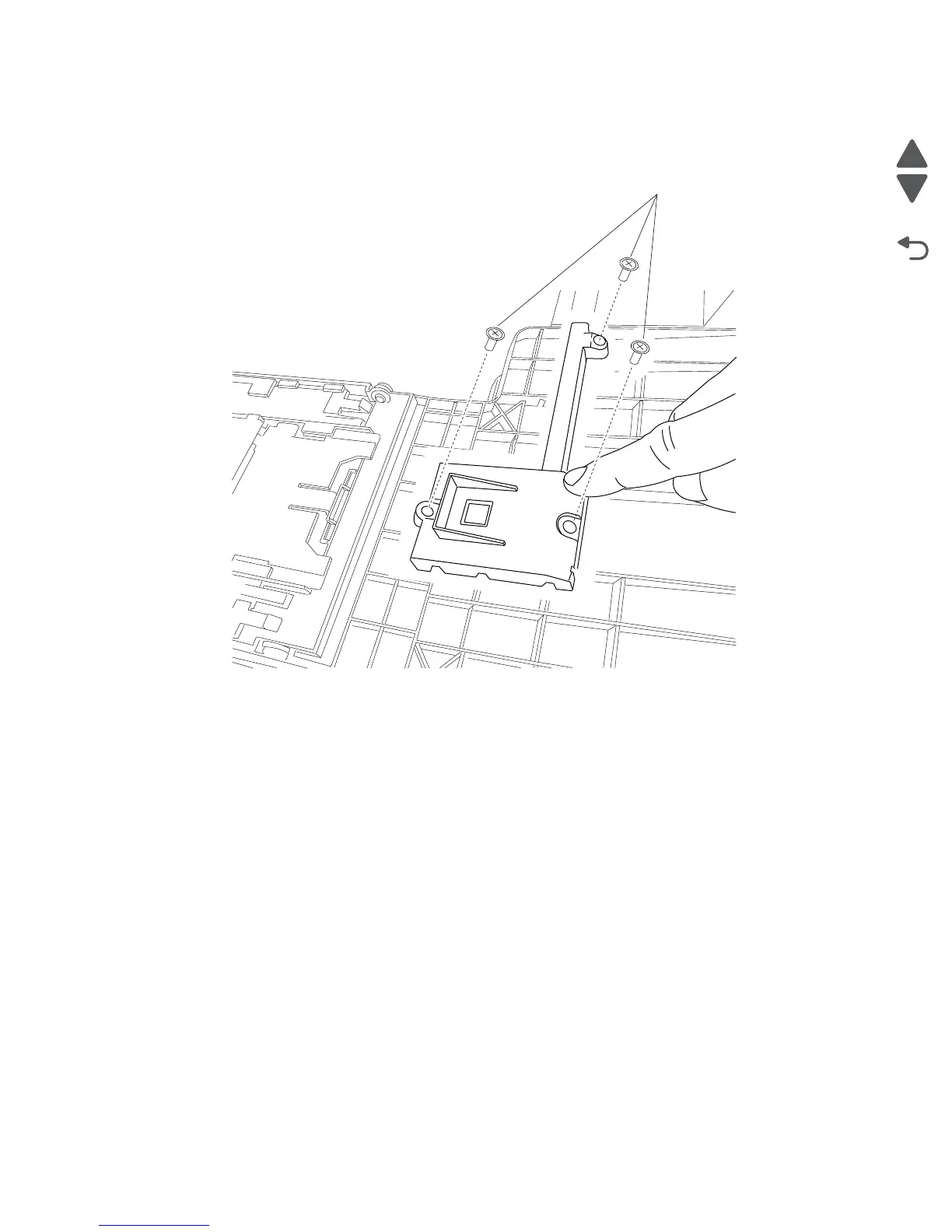

1. Remove the three screws (A) on the underside of bin 1 securing the output bin LED bracket.

2. Pull the output bin LED bracket out from the underside of bin 1 and disconnect the LED harness.
