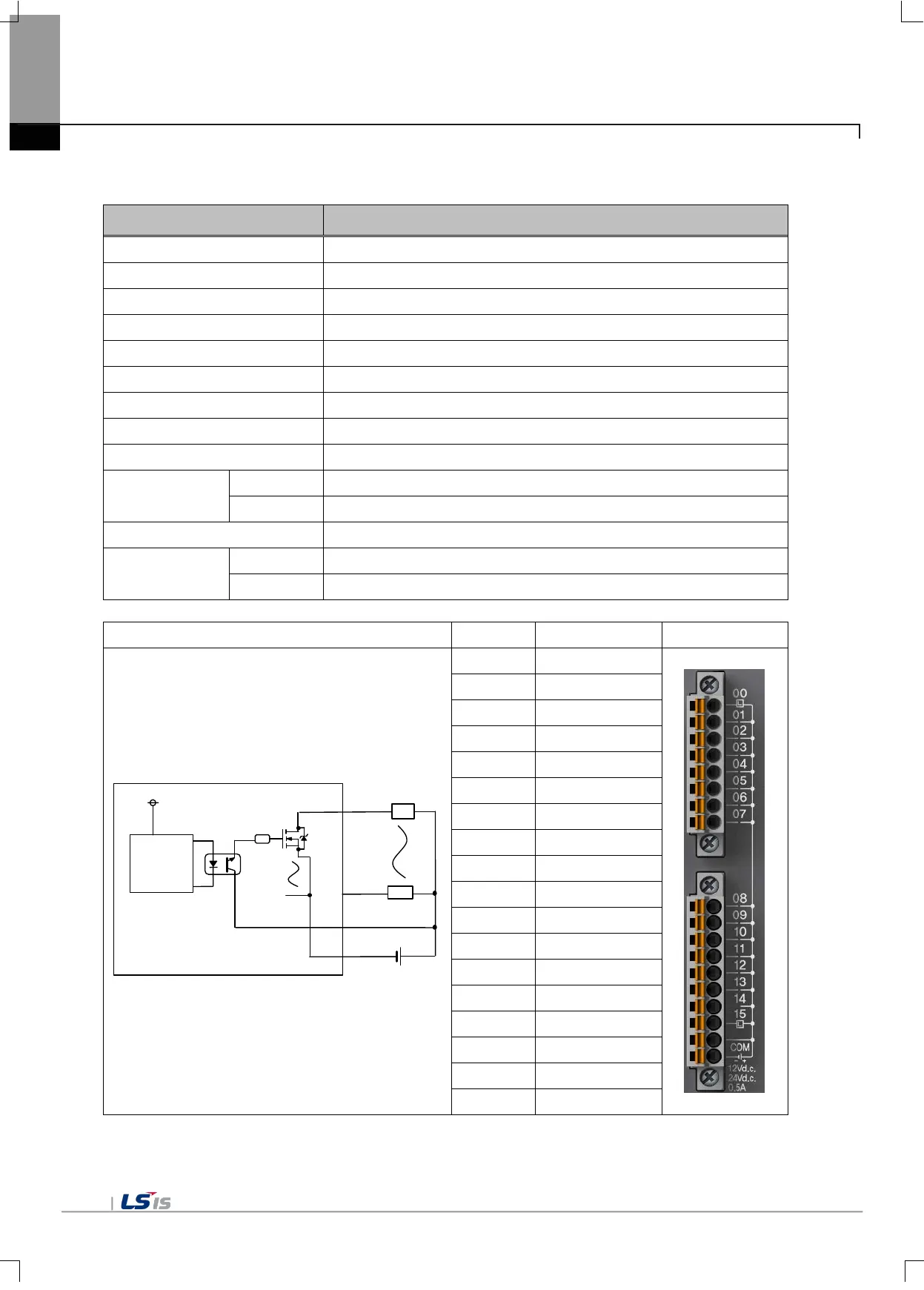

2. Output specifications (sink type)
Item Specification
Output point 16 point
Insulation method Photo-coupler insulation
Rated load voltage DC 12V / 24V
Used load voltage range DC10.2V~26.4V
Maximum load current 0.5A /point, 2A/COM
Off leakage current 0.1mA or less
Maximum inrush current 4A / 10ms or less
Maximum voltage drop(On) DC 0.3V or less
Surge absorber Zener diode
Response time
OffOn 1ms or less
OnOff 1ms or less(Rated load, resistive load)
Common method 8 points/COM
External power
Voltage DC12/24V±10% (Ripple voltage 4Vp-p or less)
Current 10mA or less (DC24V connection)
Circuit No. Point External
DC12/24V
R
내부회로
00
15
V+
COM
L
L
00 %QX0.0.0
01 %QX0.0.1
02 %QX0.0.2
03 %QX0.0.3
04 %QX0.0.4
05 %QX0.0.5
06 %QX0.0.6
07 %QX0.0.7
08 %QX0.0.8
09 %QX0.0.9
10 %QX0.0.10
11 %QX0.0.11
12 %QX0.0.12
13 %QX0.0.13
14 %QX0.0.14
15 %QX0.0.15
V+ -
COM -
