Chapter 11 Datalog Function
11.3.4 Save Folder Structure

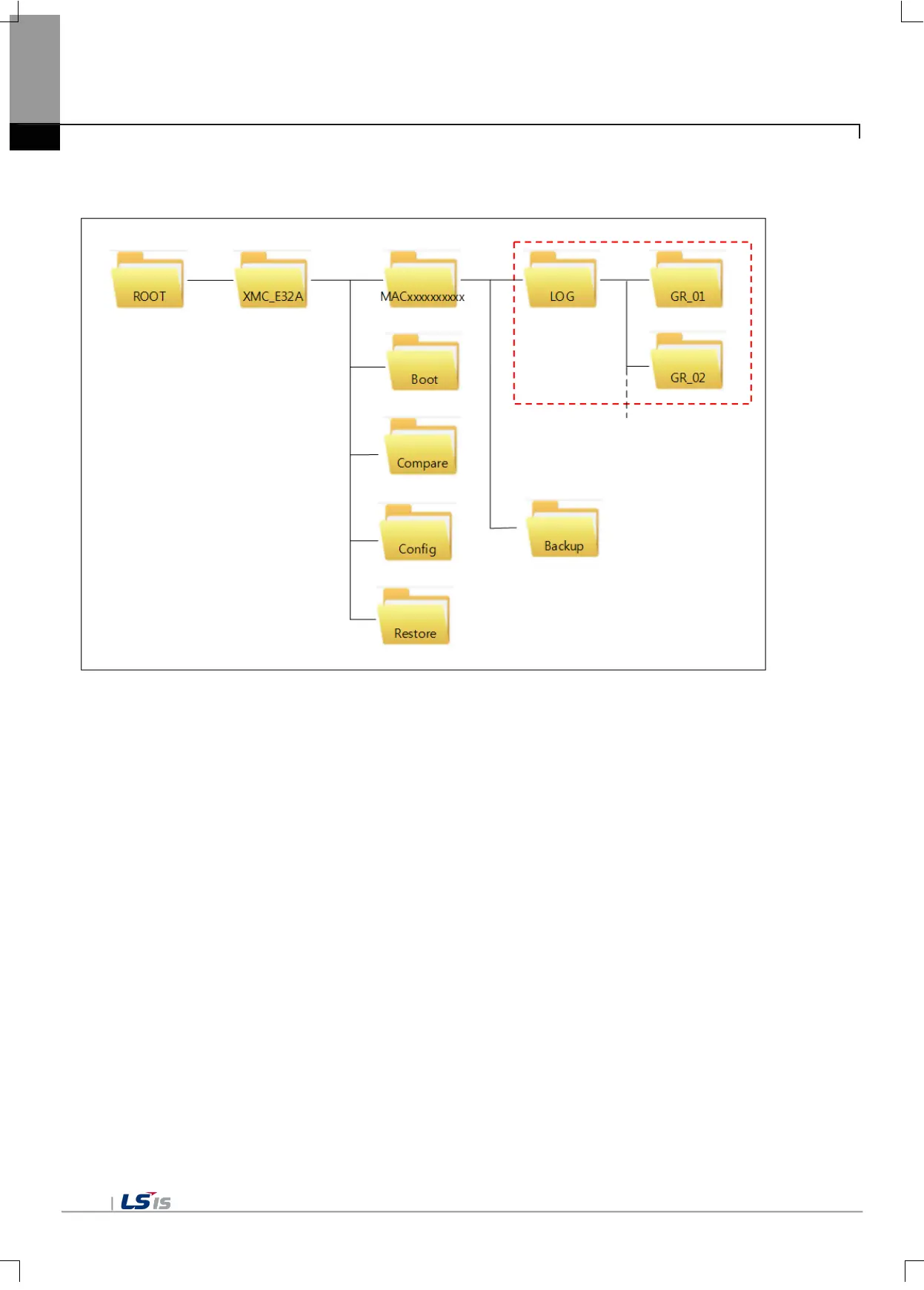

Data saved by datalog are saved in the following file structure.
(1) Folder Name: Folder name is fixed. Creating additional folder other than the structures show in in the Figure below
in the SD memory, datalog function does not show normal function. Please be careful.
(2) Data Save Folder: This folder saves log data generated by datalog. Each parameter setting group uses different
folders. The file names are created in accordance with the following rules. The data folder name can be as long as
32 characters (in case of English, no space). (The folder name indicated in the folder structure diagram is arbitrary.
Users can change the names.)
To Next Page
